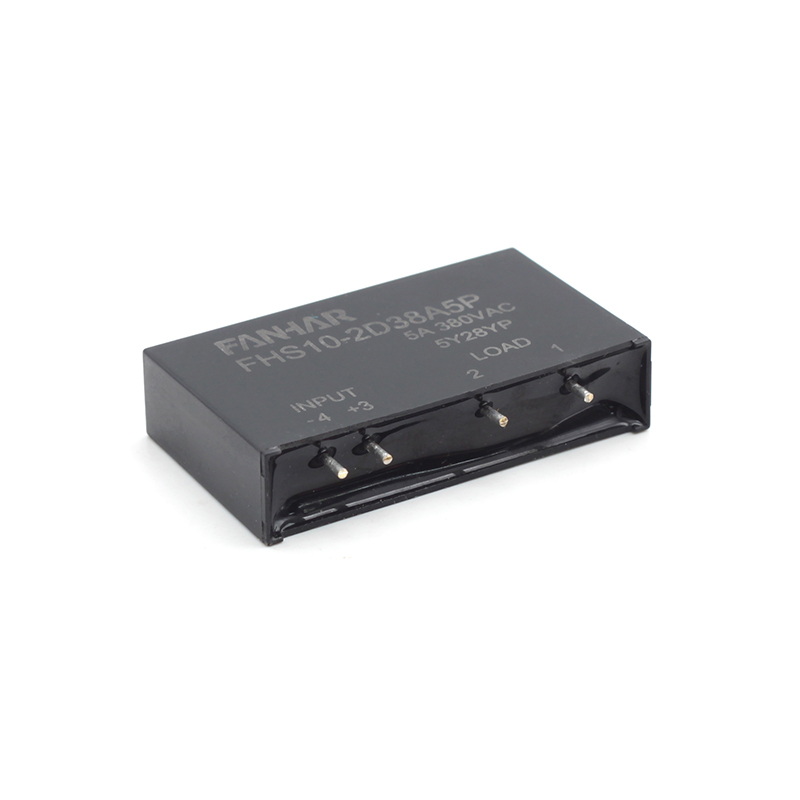

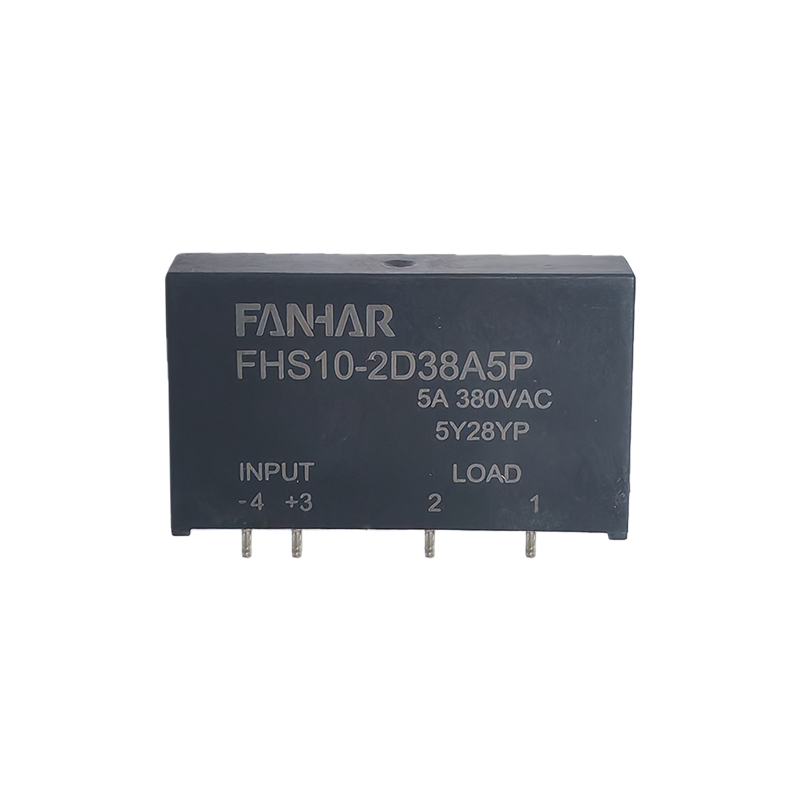

FHS10 5A 24A 38A 48A Firmus Civitas Nullam

INPUT SPECIFICATIONS (Ta=25℃)

Imperium intentione range

D

4~32）VDC

1D

9.6~14.4）VDC

2D

19.2~28.8）VDC

24A

19.2VAC～28.8VAC

110A

85VAC～132VAC

220A

175VAC～264VAC

Oportet convertat-in voltage

D

4VDC

1D

9.6VDC

2D

19.2VDC

24A

19.2VAC

110A

85VAC

220A

175VAC

Oportet convertam-off voltage

1VDC

Maximilianus. initus current

10mA

REFERO SPECIFICATIONUM (Ta=25℃)

Onus voltage range

24A

24VAC～280VAC

38A

24VAC～440VAC

48A

24VAC～530VAC

Onus current range

0.1~5A

Maximilianus. Surgere current (10ms)

320A（10ms）

Maximilianus. I²t ad usa10ms  A2S）

512

Maximilianus. off-statu ultrices ultrices

≤5mA

Maximilianus. in statu voltage gutta-

1.5Vr.m.s

Maximilianus. conversus-in tempore

Zerocross

≤1/2 Cycle 1ms

Random

≤1ms

Maximilianus. convertat-off tempus

≤1/2 Cycle 1ms

Maximilianus. caduca voltage

800VpK

Min. off-statu(dv/dt)

1000V/uS

Maximilianus. nulla-transire in voltage

±15V

Min. potentia factor

0.5

SPECIFICATIONES GENERALES (Ta=25℃)

Dielectric viribus (input ad output)

4000VAC    50HZ/60HZ    1min

Resistentia Insulation

1000MΩ（500VDC）

Overvoltage (1.2/50uS)

4KV

Mechanica

perficientur

Offensus

resistentia

Eget

98m/s2

Destructive

980m/s2

Repugnantia vibratio

10Hz~55Hz 1.5mm DA

operating temperatus

-30℃~80℃

Repono temperatus

-40℃~100℃

Ambiens humiditatem

45%~85%

Unitas pondus

Approx.20g
