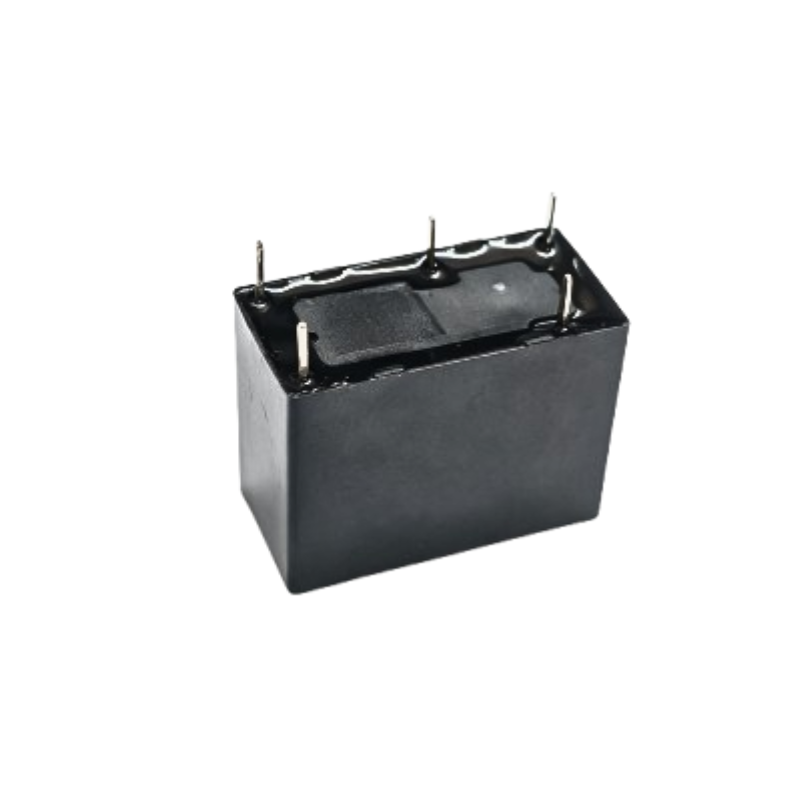

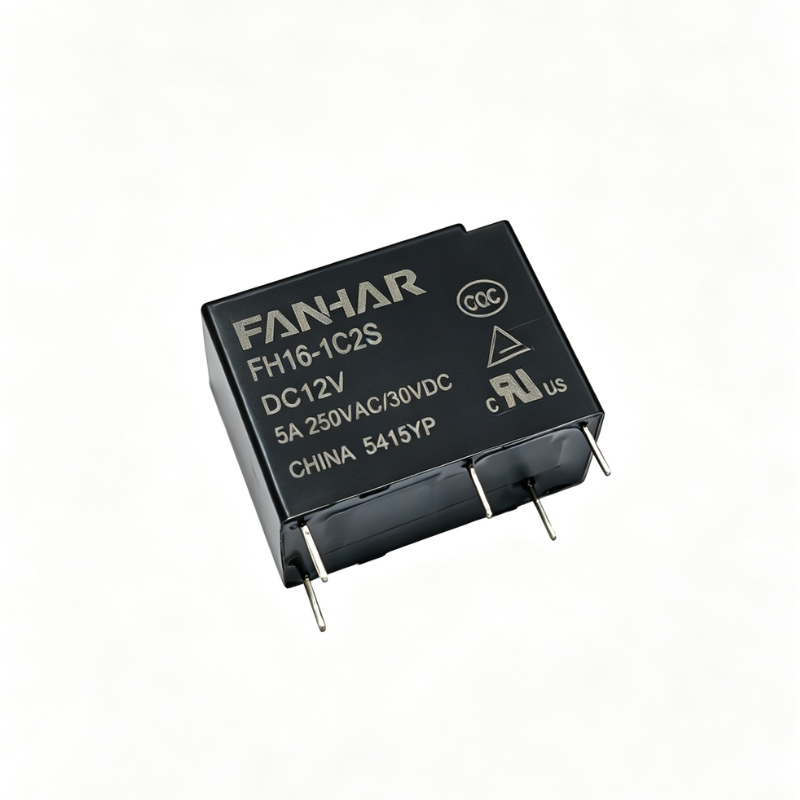

FH16 5A 10A Potentia Nullam UL TUV CQC Compliant

Specifications

Item

Contactus Data

Contactus dispositio

1A､1B､1C

Contactus resistentia (initial)

≤100mΩ(6VDC 1A)

Contactus materia

AgNi､AgSnO ₂

Aestimavit valorem

Rated onus (Resistentia onus)

5A   250VAC/30VDC

10A  250VAC/30VDC

Max.switching voltage

277VAC/30VDC

Max.switching current

10A

Max.switching facultatem

2500VA/300W

Min.allowing onus

5VDC 100mA

Electrical perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Dielectric viribus
(initial)

Inter aperta contactus

1000VAC,1 min

Inter coil & contactus

4000VAC,1 min

Tempus agunt

≤10ms

Dimittis tempus

≤5ms

Mechanica perficientur

Offensus
resistentia

Eget

98m/s ² (10g)

Destructive

980m/s ² (100g)

Repugnantia vibratio

10Hz~55Hz 1.5mm DA

patientia

Mechanica

5×10 ⁶ Opis

Electrical (Locus temperatus)

5A   250VAC/30VDC                     1×10 ⁵ Opis(ON/OFF=1s/9s)

10A  250VAC/30VDC                     5×10 ⁴ Opis(ON/OFF=1s/9s)

Operate conditio

Ambiens temperatus

-40℃~85/105℃

Umor

V% ad XC%

Terminatio

PCB

Unitas pondus

Proxime 6g*

Construction

Plastic signatus-Flux probatum
