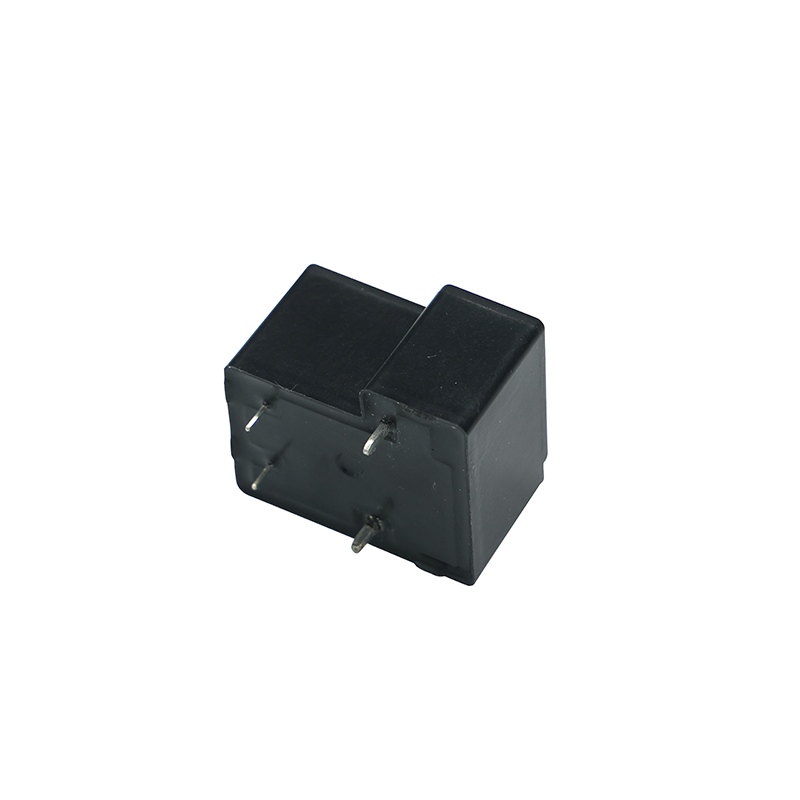

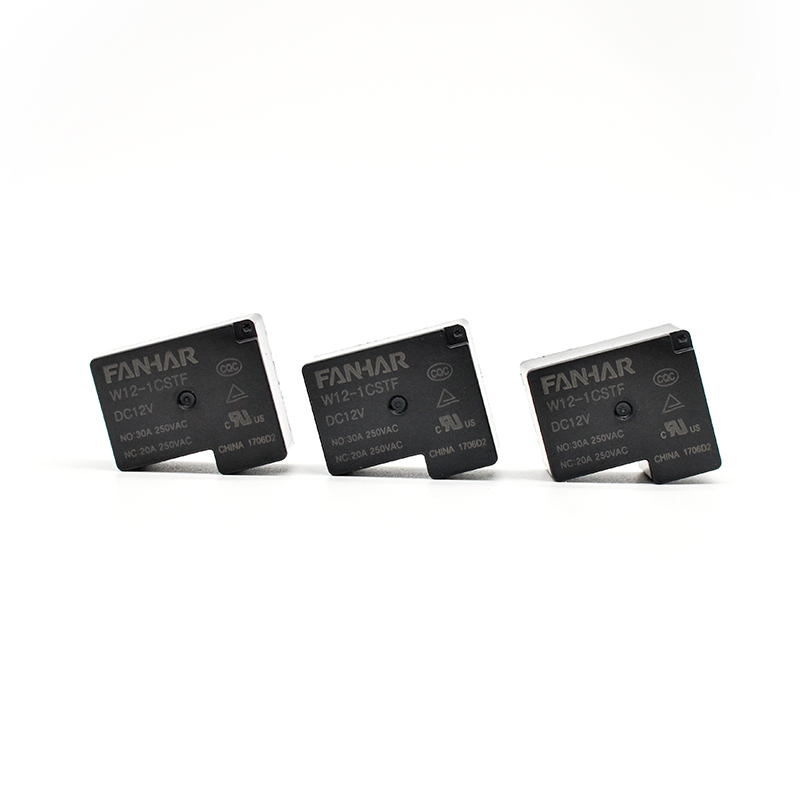

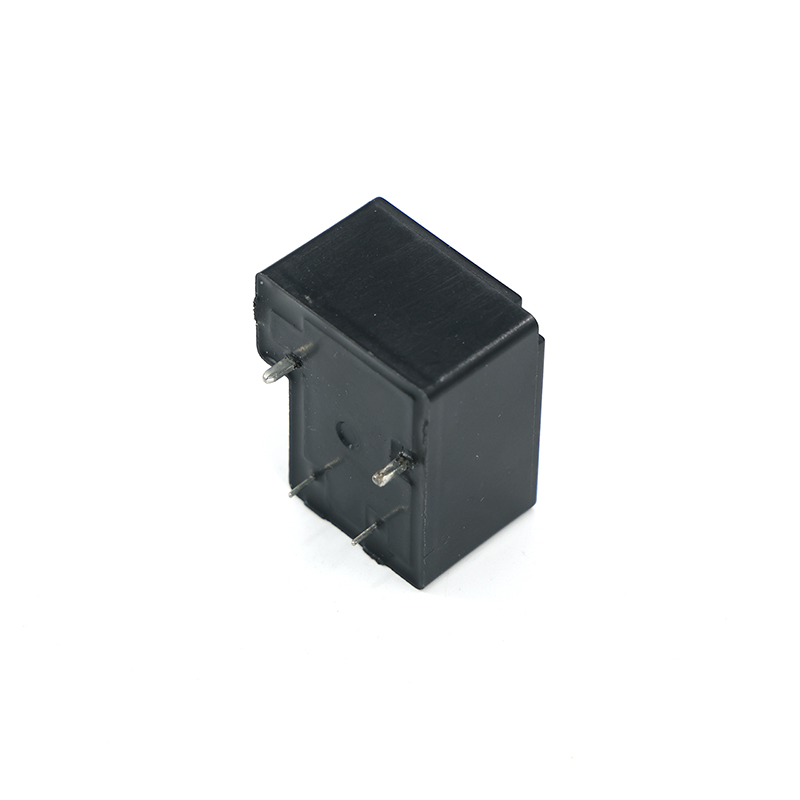

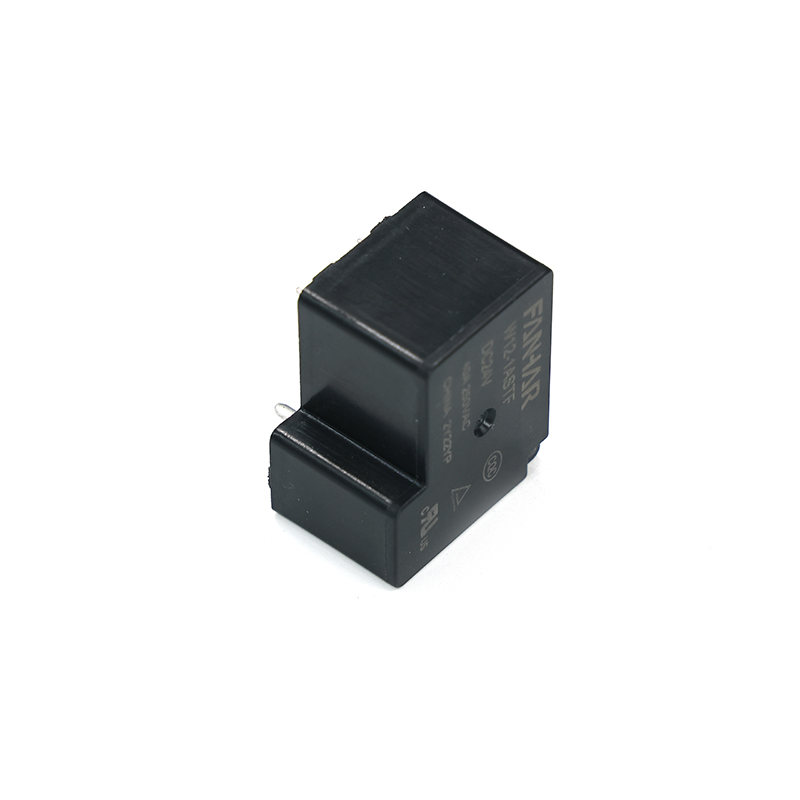

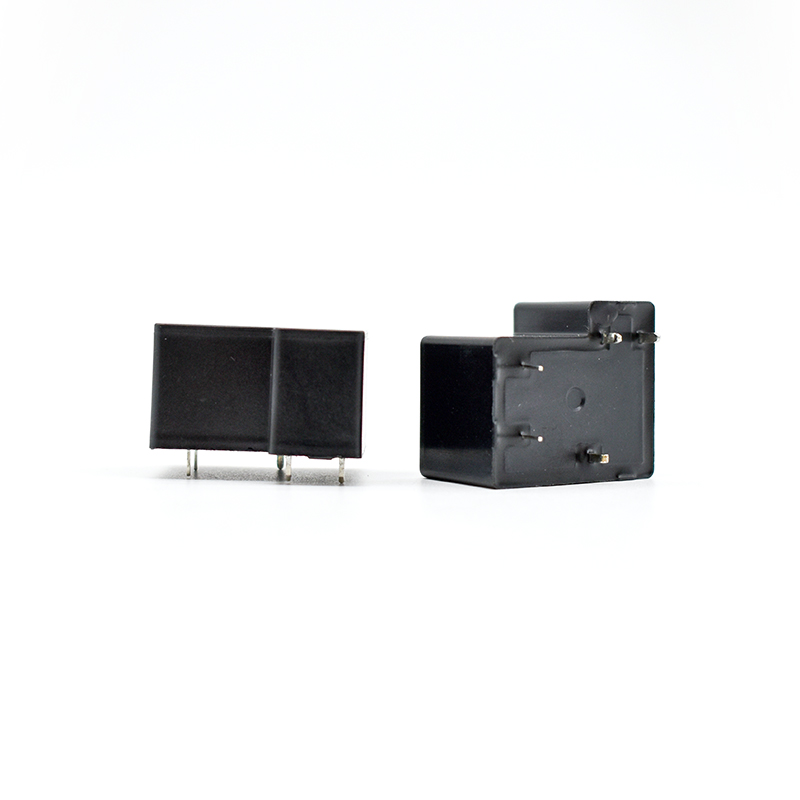

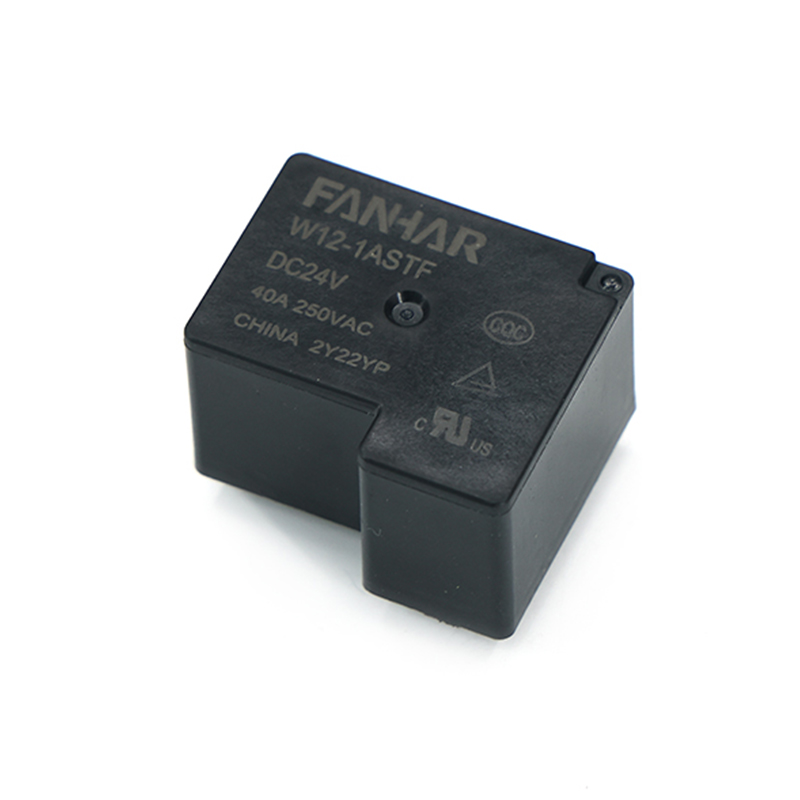

W12 30A 40A Potestas Nullam UL TUV CQC Compliant

Specifications

Item

Standard

BG Type

Contactus Data

Contactus dispositio

1A、1C

1A

Contactus resistentia (initial)

≤100mΩ(6VDC 1A)

100mΩ(6VDC 1A)

Contactus materia

AgNi､AgSnO ₂

Aestimavit valorem

Rated onus (Resistentia onus)

30A(Latin)/40A  250VAC
20A  30VDC

30A  250VAC
20A  48VDC

Max.switching voltage

277VAC/30VDC

277VAC/48VDC

Max.switching current

40A

Max.switching facultatem

10000VA/600W

7500VA/960W

Min.allowing onus

5VDC 100mA

Electrical perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Vim dielectric (initial)

Inter aperta contactus

1500VAC, 1min

2500VAC, 1min

Inter coil & contactus

2500VAC(vexillum)/4000VAC, 1min

Tempus agunt

≤15ms

≤20ms

Dimittis tempus

≤10ms

≤15ms

Mechanica perficientur

Repugnantia inpulsa

Eget

98m/s ² (10G)

Destructive

980m/s ² (100G)

Repugnantia vibratio

10Hz~55Hz 1.5mm DA

patientia

Mechanica

5× 10 ⁶ Opis

Electrical (Locus temperatus)

40A 250VAC  2×10 ⁴ Opis(ON/OFF=1s/9s)
30A 250VAC  5×10 ⁴ Opis(ON/OFF=1s/9s)
20A 30VDC  1×10 ⁵ Opis(ON/OFF=1s/9s)

40A 250VAC  2×10 ⁴ Opis(ON/OFF=1s/9s)
30A 250VAC  5×10 ⁴ Opis(ON/OFF=1s/9s)
20A 48VDC  5×10 ⁴ Opis(ON/OFF=1s/9s)

Operate conditio

Ambientium temperamentum

-40℃~85℃

Umor

5% ad 90%

Terminatio

PCB

Unitas pondus

Approx.27g

Construction

Plastic signatus, Flux probatum
