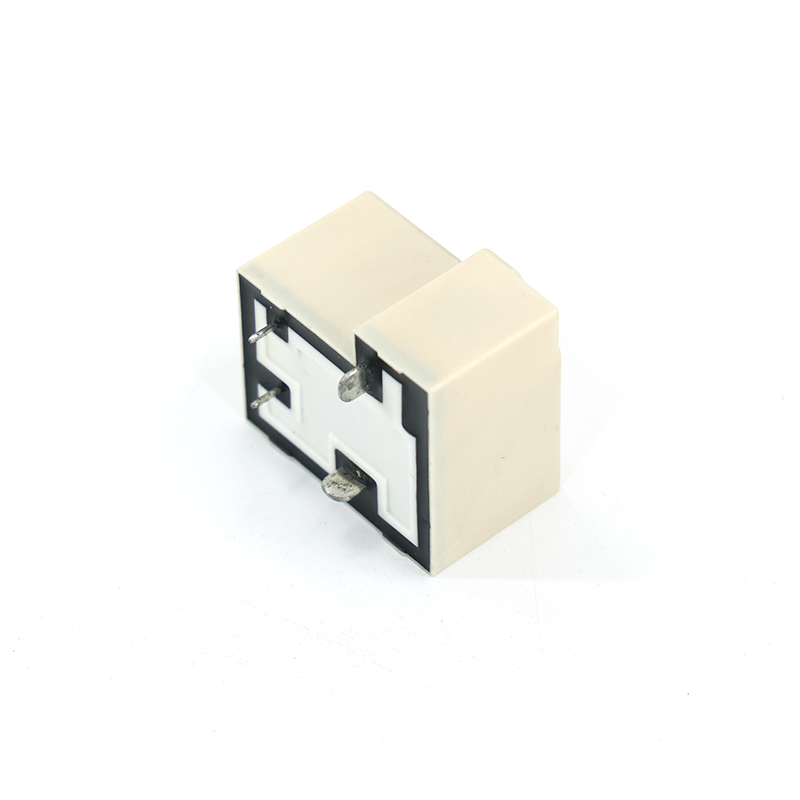

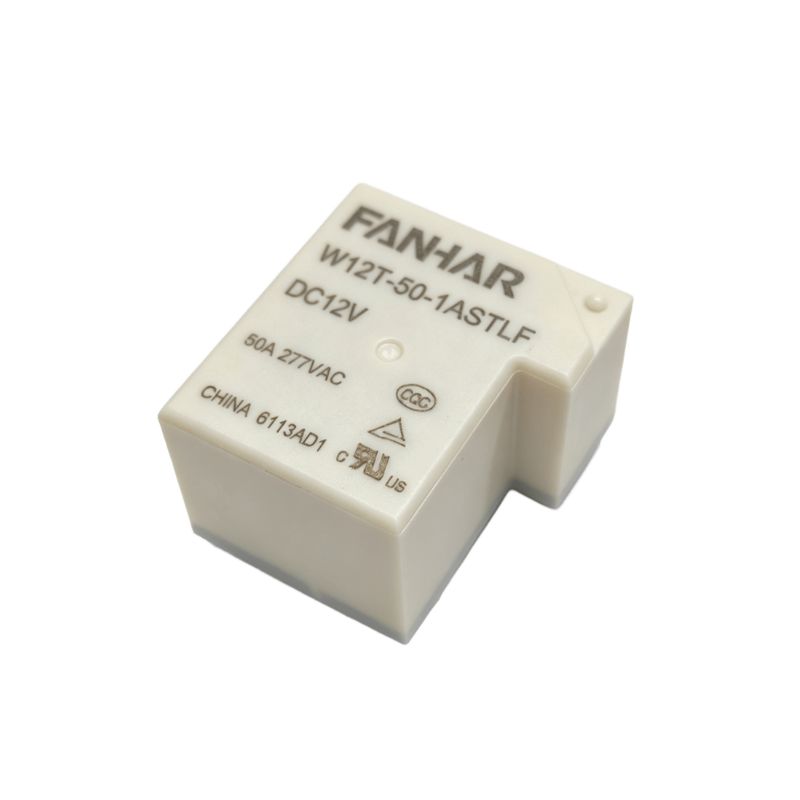

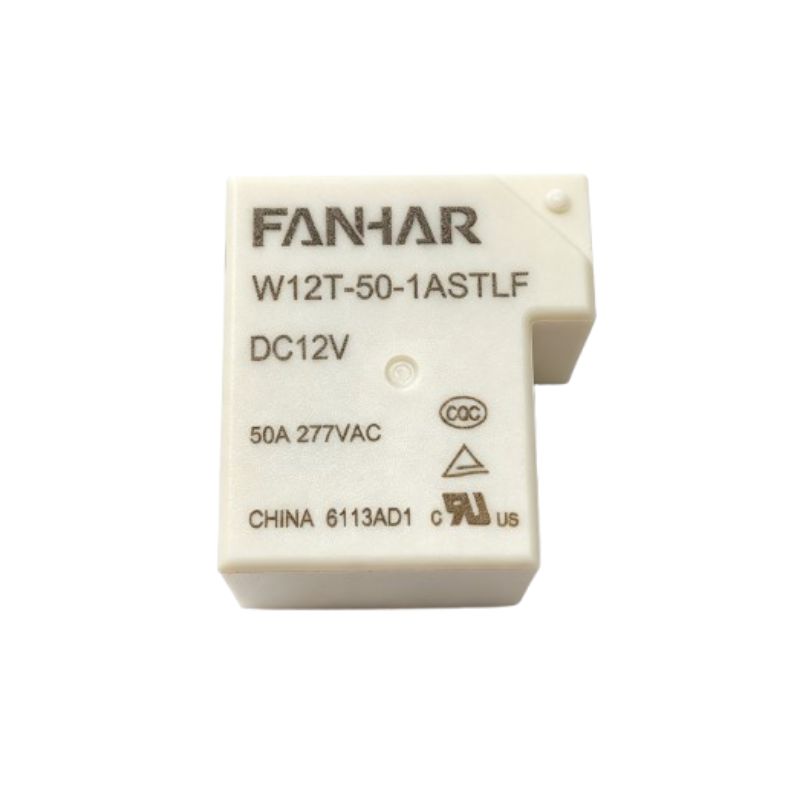

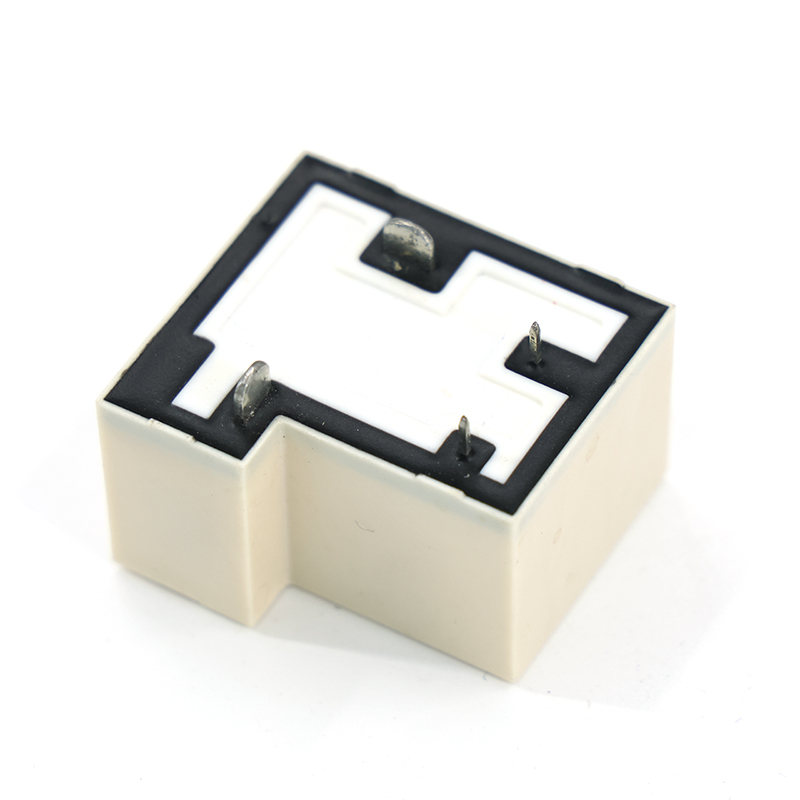

W12T-50 50A 60A Nova Energy Nullam UL TUV CQC Compliant

Specifications

Item

Contactus Data

Contactus dispositio

1A、1C

Contactus resistentia (initial)

50mΩ(6VDC 1A)

Contactus materia

AgSnO ₂

Aestimavit valorem

Rated onus (Resistentia onus)

NO: 60A  277/250VAC
50A  277/250VAC
40A  277/250VAC
NC:20A  277/250VAC

Max.switching voltage

277VAC

Max.switching current

50A

Max.switching facultatem

13850VA

Min.allowing onere

5VDC 100mA

Electrical

perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Vim dielectric (initial)

Inter aperta contactus

1500VAC, 1min

Inter coil & contactus

2500VAC(Latin Type)/4000VAC,1min

Tempus agunt

≤20ms

Dimittis tempus

≤10ms

Mechanica

perficientur

Repugnantia inpulsa

Eget

98m/s2

Destructive

980m/s2

Vibratio resistendi

10Hz~55Hz 1.5mm DA

patientia

Mechanica

5× 106ops

Electrical (Locus temperatus)

NO:60A  277/250VAC           1×10 ⁴ Opis (ON/OFF=1s/9s)
50A  277/250VAC          2×10 ⁴ Opis (ON/OFF=1s/9s)
40A  277/250VAC          3×10 ⁴ Opis (ON/OFF=1s/9s)
NC:20A  277/250VAC           2×10 ⁴ Opis (ON/OFF=1s/9s)

Operate conditio

Ambientium temperamentum

-40℃~85℃

Umor

5% ad 90%

Terminatio

PCB

Unitas pondus

Approx.30g

Construction

Plastic signatus, Flux probatum
