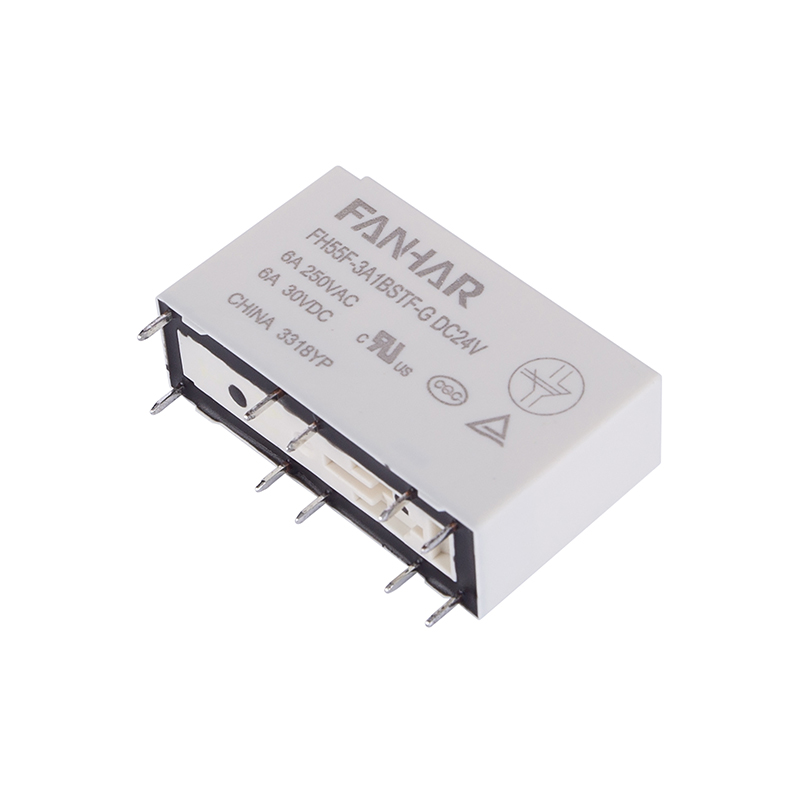

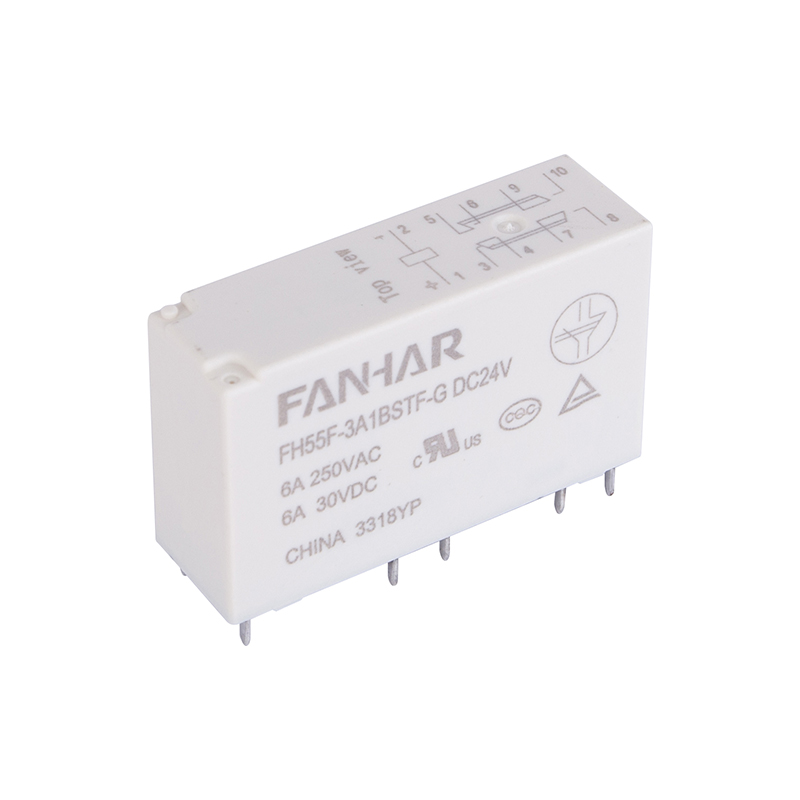

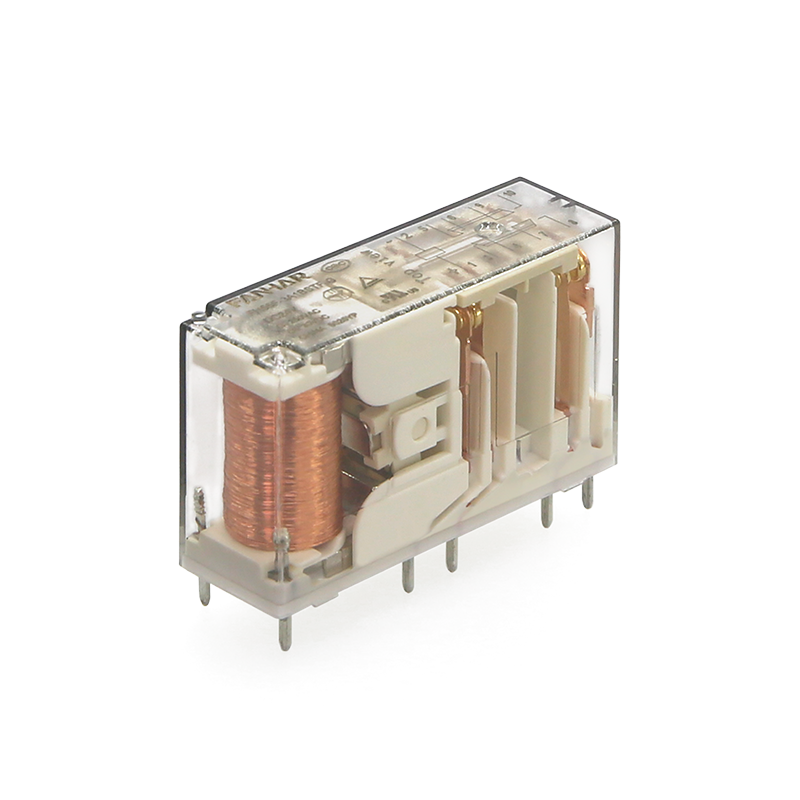

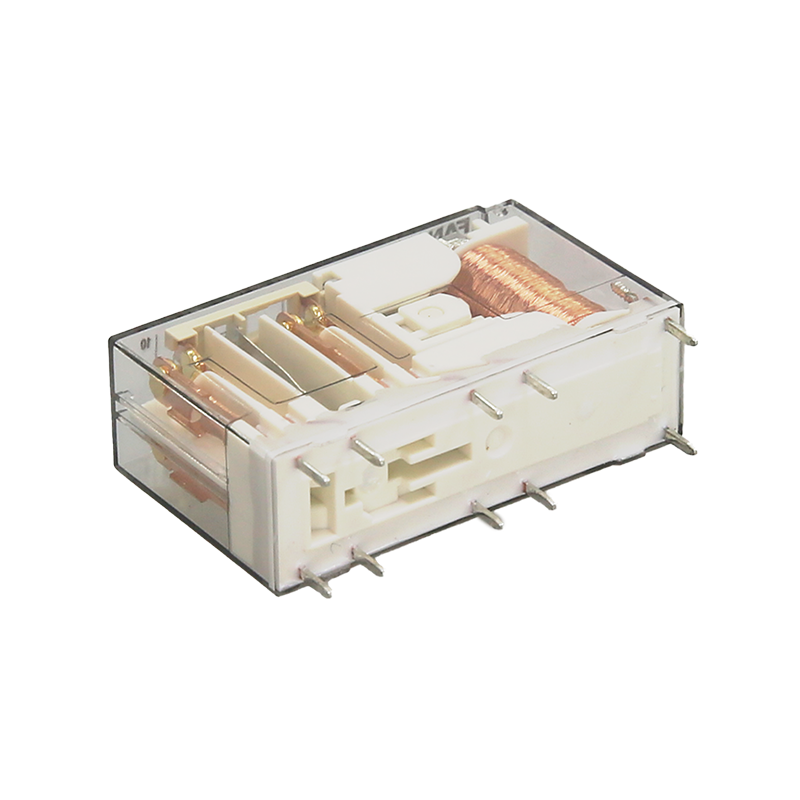

FH55F 6A Industrial Nullam UL TUV CQC Compliant

Specifications

Item

Contactus Data

Contactus dispositio

3A1B､2A2B

Classification structuralis

(Secundum  EN50205)

Class A orientatio amet

Contactus resistentia (initial)

≤100mΩ(6VDC 1A)

Contactus materia

AgSnO ₂

Aestimavit valorem

Rated onus (Resistentia onus)

6A  277VAC/30VDC

Max.switching voltage

400VAC

Max.switching current

6A

Max.switching facultatem

1662VA/180W

Min.allowing onus

5VDC 10mA (Aurum Plating Contactus)

Electrical perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Dielectric viribus

(initial)

Inter aperta contactus

1500VAC

Inter coil & contactus

4000VAC,1min

Inter contacta coetus

2500VAC,1min(7-8/9-10) 4000VAC, 1min(Alia)

Tempus agunt

≤20ms

Dimittis tempus

≤20ms

Mechanica perficientur

Offensus

resistentia

Eget

98m/s ² (10g)

Destructive

980m/s ² (100g)

Repugnantia vibratio

N0/NC:10Hz~55Hz  1.5mm DA

N0:55Hz~200Hz,98m/s2    NC:55Hz~200Hz, 49m/s2

Creepage procul

Inter coil & contactus

8mm

Inter contacta coetus

5.5mm

Caeli spatium

Inter coil & contactus

8mm

Inter contacta coetus

5.5mm

patientia

Mechanica

1×107ops

Electrical (Locus temperatus)

6A 277VAC/30VDC                                                                            ON/OFF=s/9s)

Operate conditio

Ambiens temperatus

-40℃~85℃

Umor

V% ad LXXXV%

Terminatio

PCB

Unitas pondus

Approx.22g

Construction

Plastic signatus-Flux probatum
