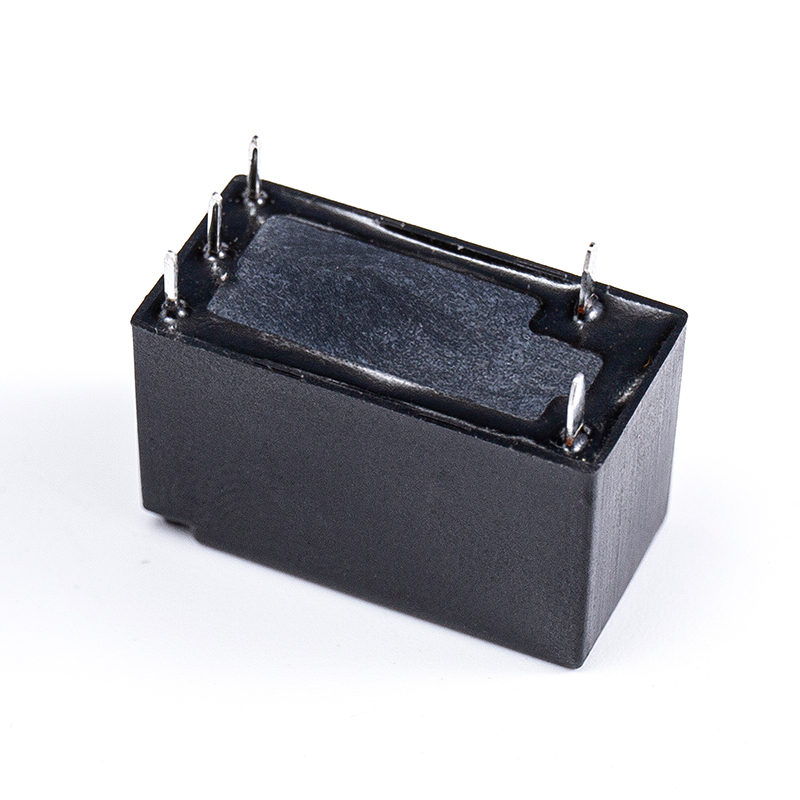

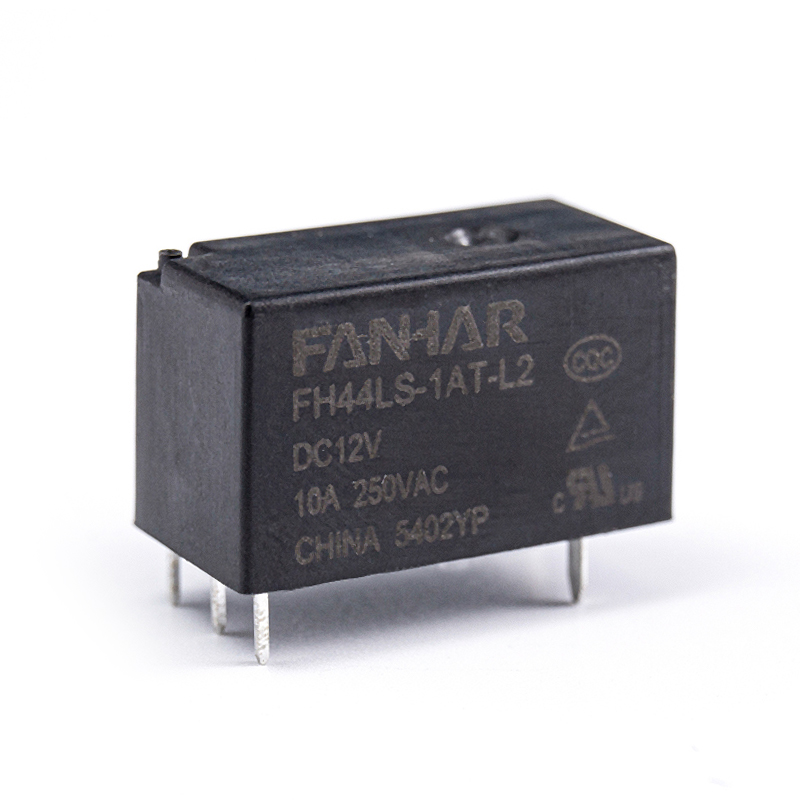

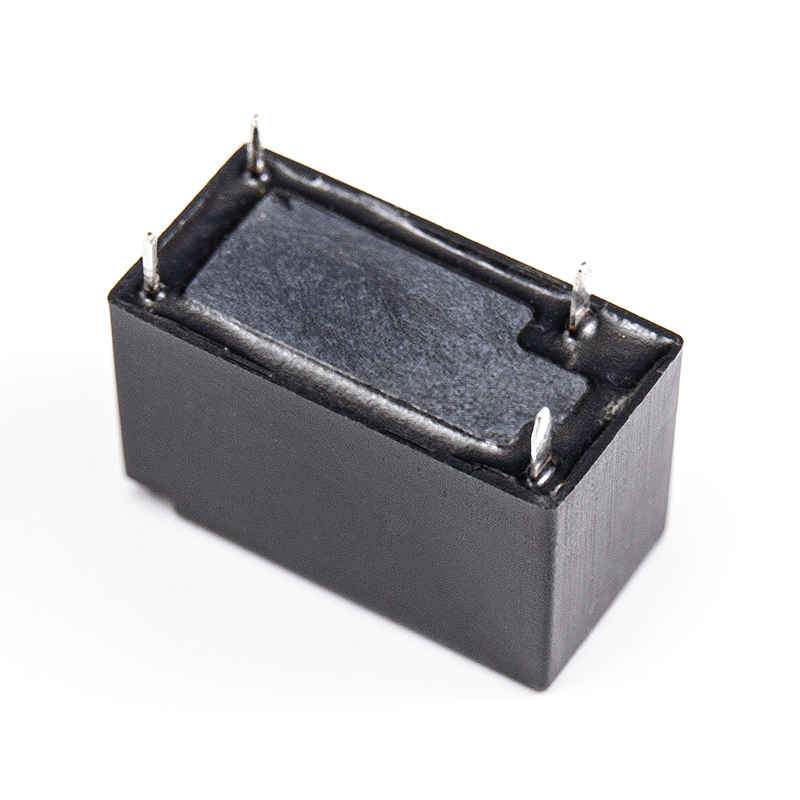

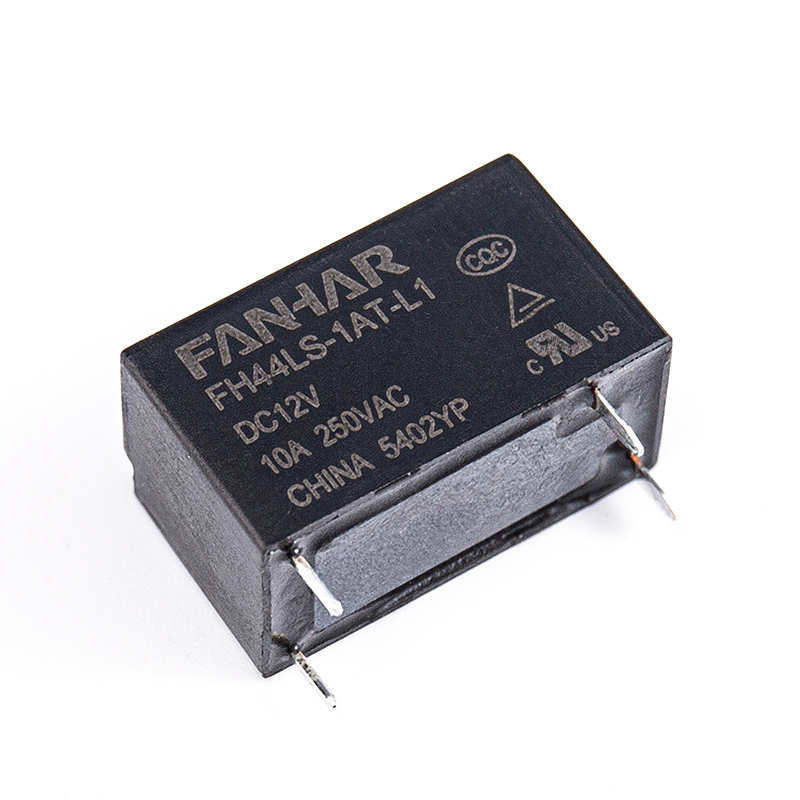

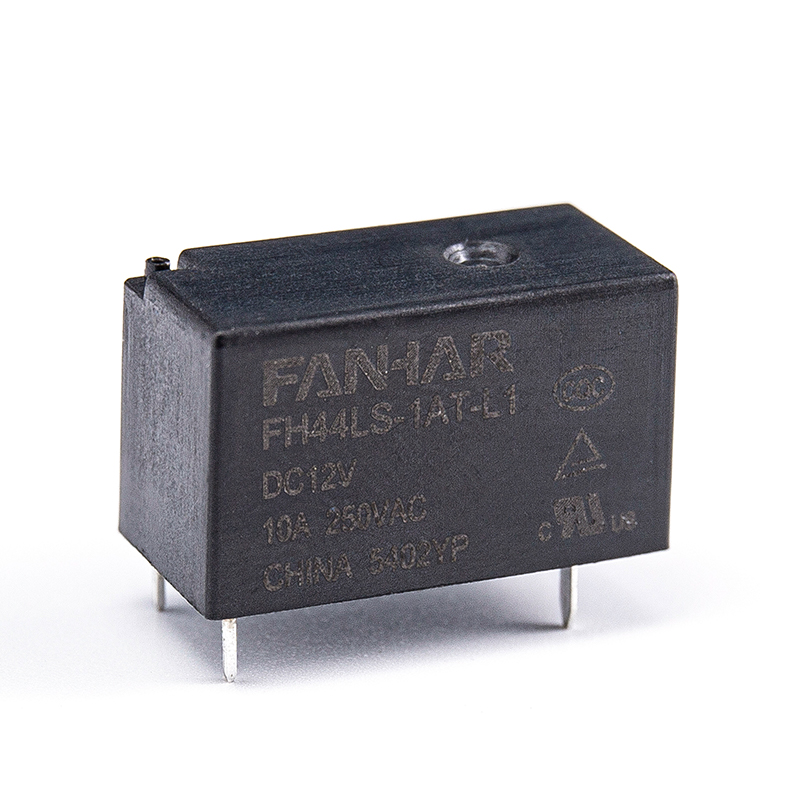

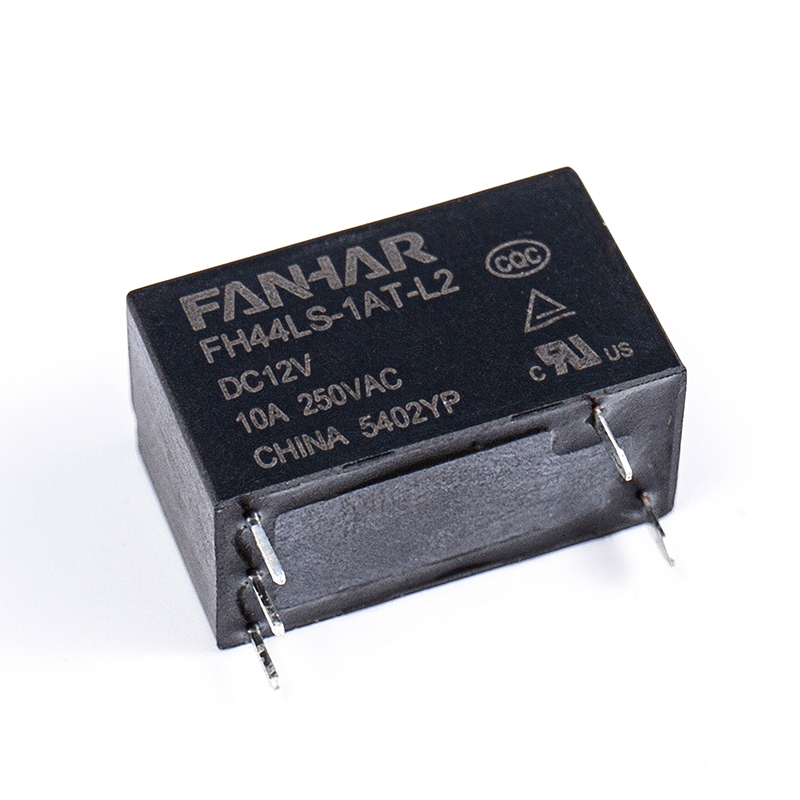

FH44LS 10A Latching Nullam UL TUV CQC Compliant

Specifications

Item

Contactus Data

Contactus dispositio

1A

Contactus resistentia

≤50mΩ(6VDC 1A)

Contactus materia

AgSnO ₂

Aestimavit valorem

Rated onus (Resistentia onus)

10A  250VAC

Max.switching voltage

277VAC

Max.switching current

12A

Max.switching facultatem

3000VA

Min.allowing onus

5VDC 100mA

Electrical perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Dielectric viribus
(initial)

Inter aperta contactus

1000VAC,1min

Inter coil & contactus

3000VAC,1min

Statuto tempore

≤10ms

Reset tempus

≤10ms

Mechanica perficientur

Offensus
resistentia

Eget

98m/s ² (10g)

Destructive

980m/s ² (100g)

Repugnantia vibratio

10Hz~55Hz 1.5mm DA

patientia

Mechanica

1×10 ⁶ Opis

Electrical (Locus temperatus)

8A   250VAC           1×10 ⁵ Opis(ON/OFF=1s/9s，Resistive Load)

10A   250VAC          5×10 ⁴ Opis(ON/OFF=1s/9s，Resistive Load)

12A   250VAC          3×10 ⁴ Opis(ON/OFF=1s/9s，Resistive Load)

Operate conditio

Ambiens temperatus

-40℃～85℃

Umor

V% ad LXXXV%

Terminatio

PCB

Unitas pondus

Approx.4.5g

Construction

Plastic signatus-Flux probatum
