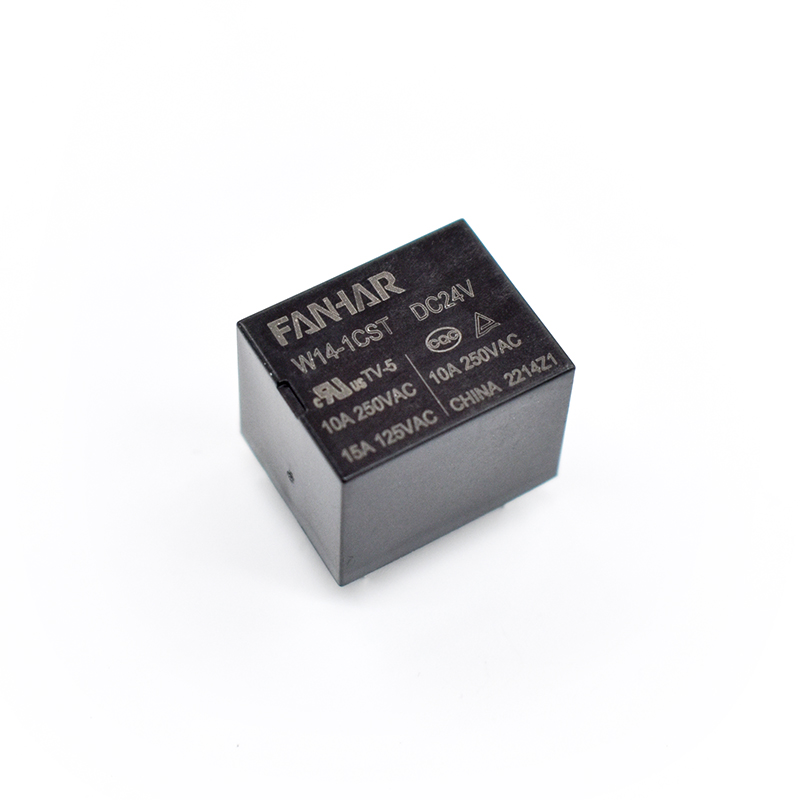

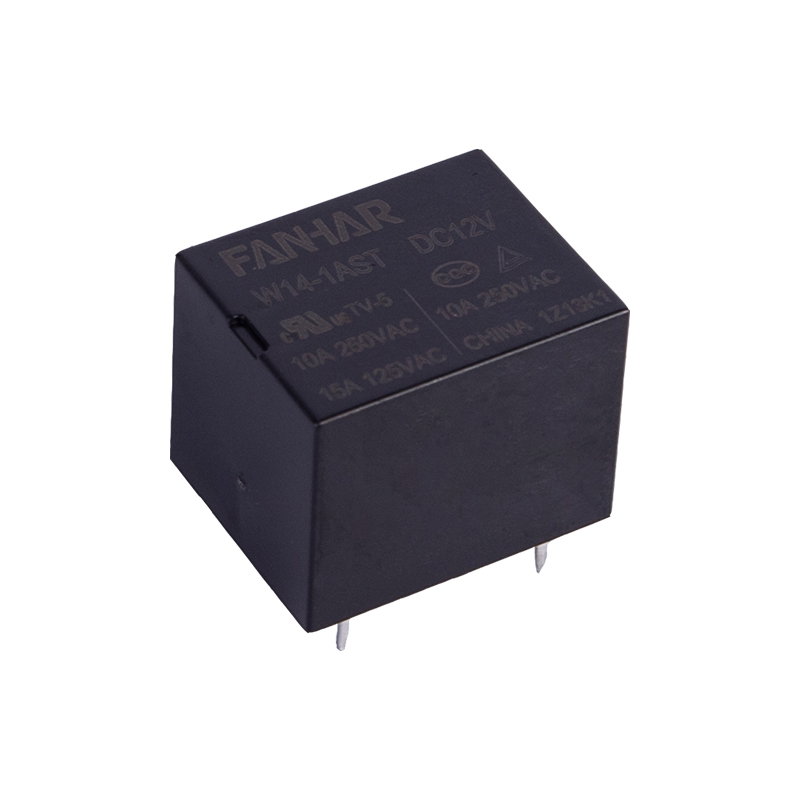

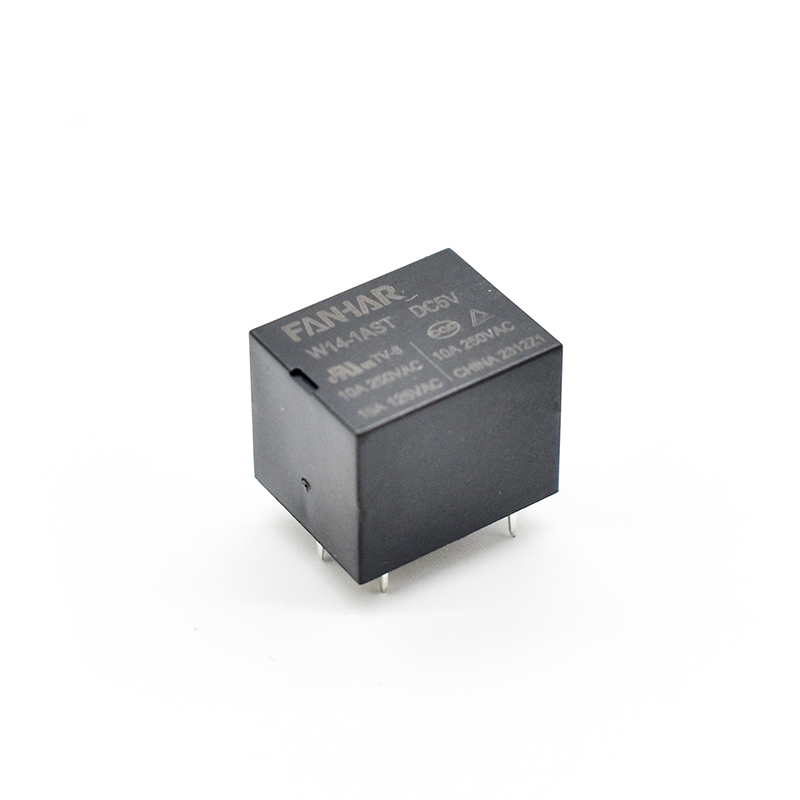

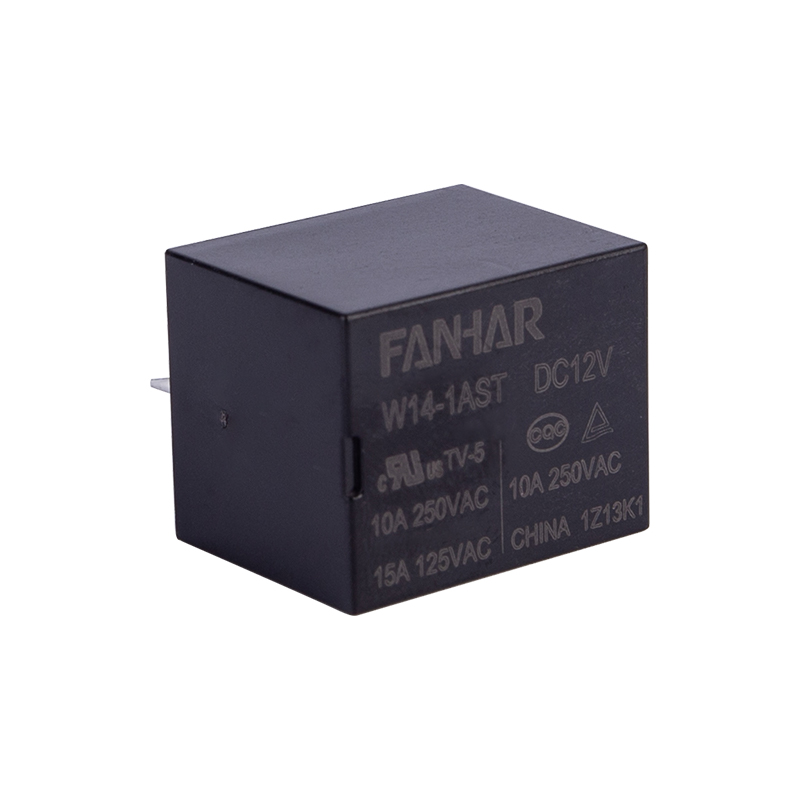

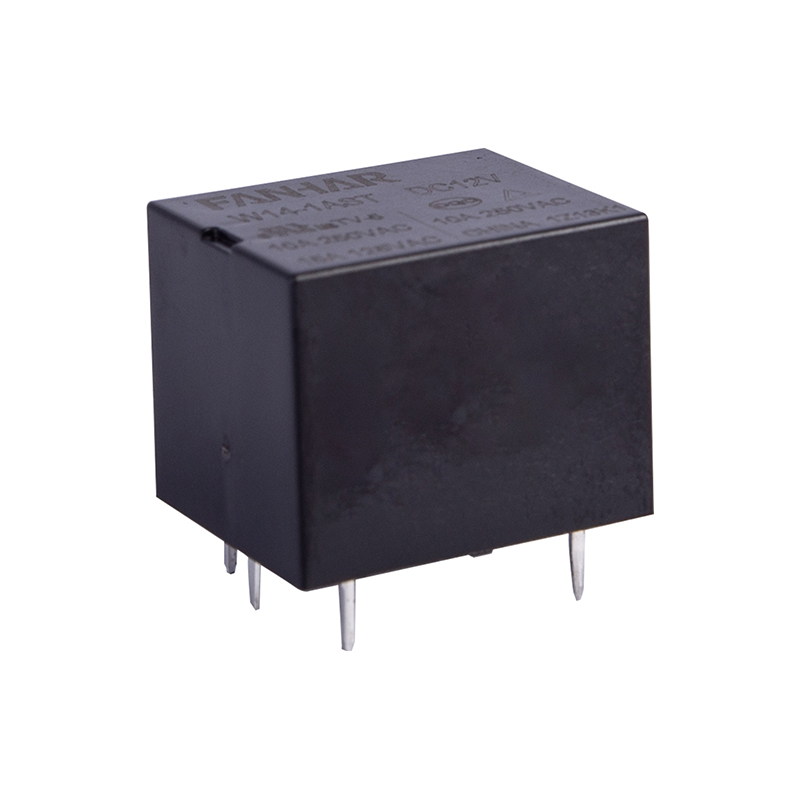

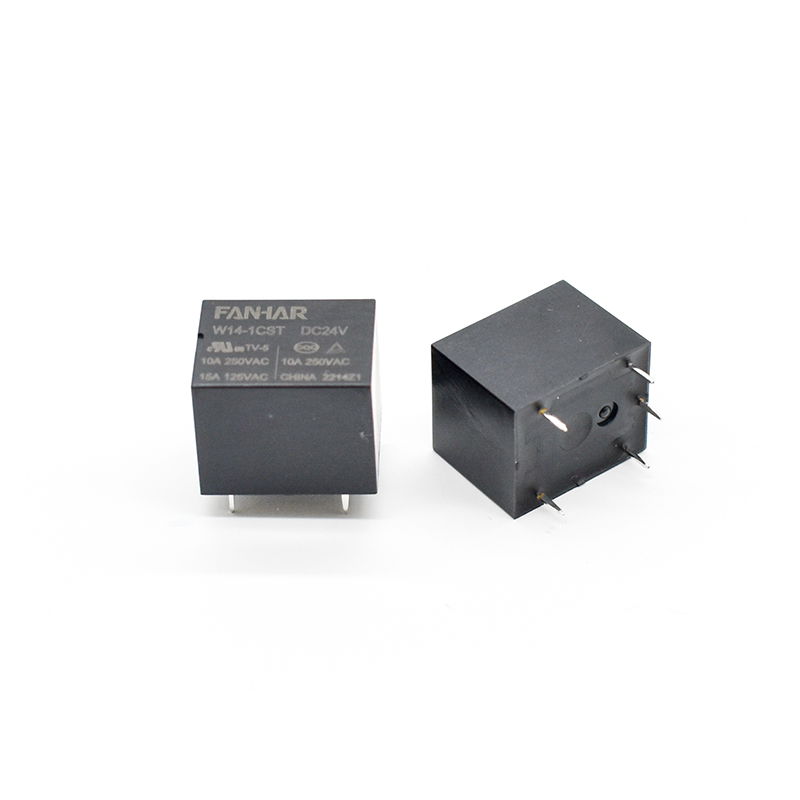

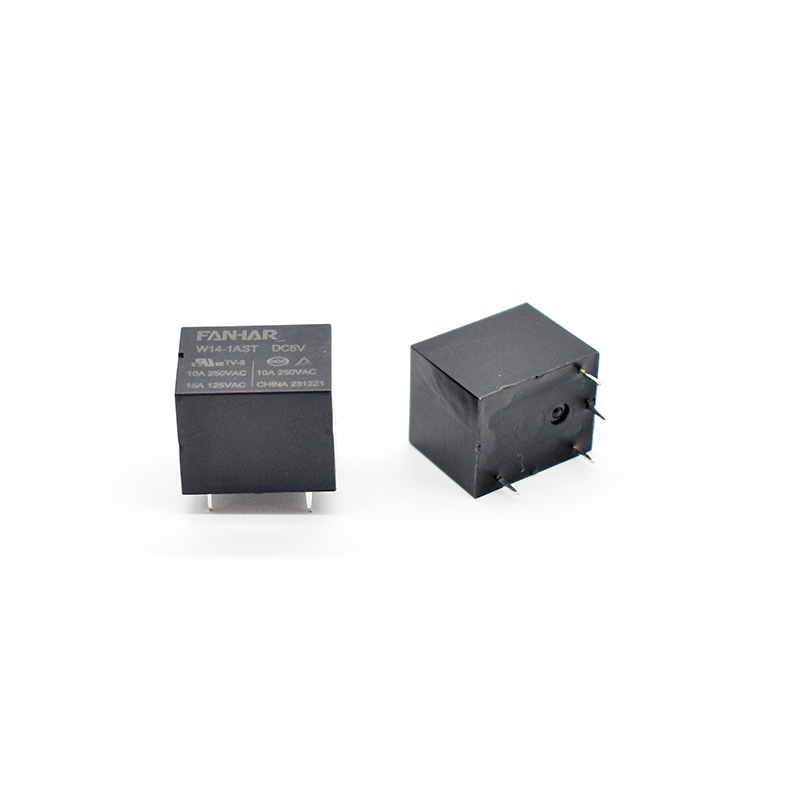

W14 10A 15A Potestas Nullam UL TUV CQC Compliant

Specifications

Item

Contactus Data

Contactus dispositio

1A、1B、1C

Contactus resistentia

≤100mΩ(6VDC 1A)

Contactum materiale

AgSnO ₂

Aestimavit valorem

Ratum onus (Resistentia onus)

10A  250VAC/30VDC

15A 125VAC

Max.switching voltage

277VAC/30VDC

Max.switching current

15A

Max.switching facultatem

2500VA/300W

Min.allowing onere

5VDC 100mA

Electrical

perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Vim dielectric (initial)

Inter aperta contactus

750VAC, 1min

Inter coil & contactus

1500VAC, 1min

Tempus agunt

≤10ms

Dimittis tempus

≤5ms

Mechanica

perficientur

Offensus

resistentia

Eget

98m/s2(10g)

Destructive

980m/s2(100g)

Vibratio resistendi

10Hz~55Hz 1.5mm DA

patientia

Mechanica

1× 10 ⁶ Opis

Electrical (Locus temperatus)

5A       250VAC/30VDC                1×10 ⁵ Opis(ON/OFF=1s/9s)
10A     250VAC/30VDC               5×10 ⁴ Opis(ON/OFF=1s/9s)
15A       125VAC                                5×10 ⁴ Opis(ON/OFF=1s/9s)
1/2HP  125VAC(motor)                    3×10 ⁴ Opis(ON/OFF=1s/9s)
600W  120VAC(Lamna ducatur)           2.5×10 ⁴ Opis (ON/OFF=1s/9s)

Agere

conditio

Ambientium temperamentum

-40℃~85/105℃

Umor

5% ad 90%

Terminatio

PCB

Unitas pondus

Approx.7g

Construction

Plastic signatum、Flux probatum
