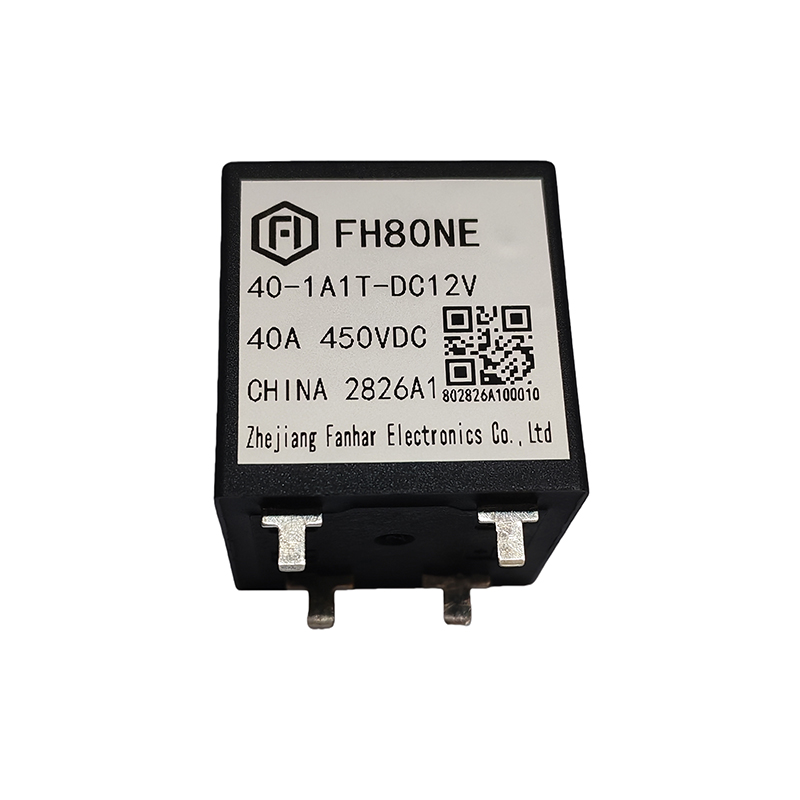

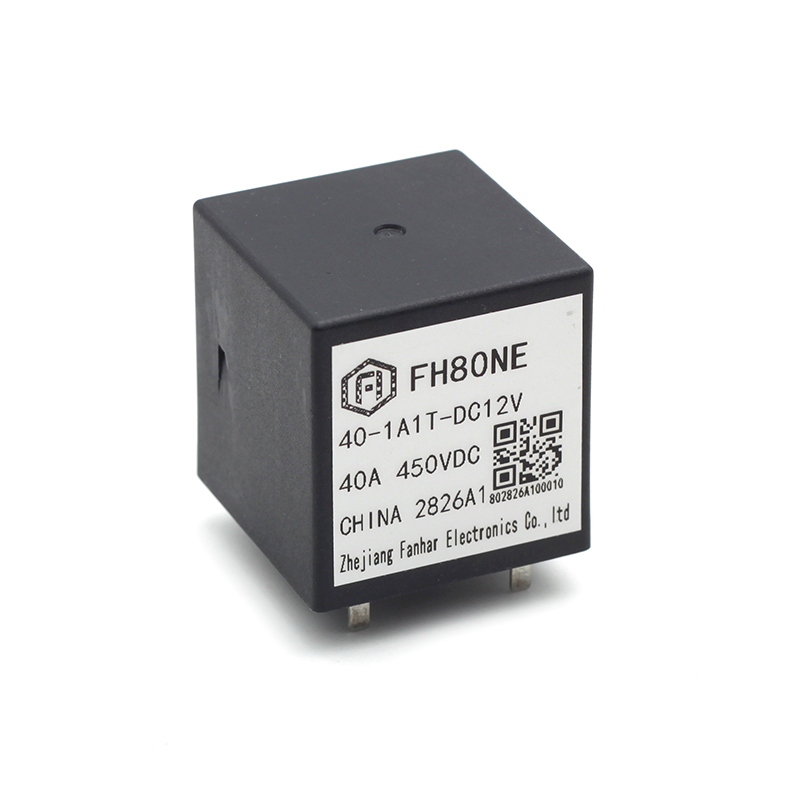

FH80NE 40A Nova Energy Nullam

Specifications

Item

Contactus Data

Contactus dispositio

1A

Contactus resistentiam (initialem)

≤5mΩ(6VDC 20A)

Contactus materia

AgSnO ₂

Aestimavit valorem

Ratum Current

40A

Pretium (Resistentia onere)

40A  450VDC

Max.switching voltage

750VDC

Maximilianus. praevaricationem current

50A (450 VDC) ≥1op

Max.switching facultatem

22500VA

Electrical

perficientur

Resistentia Insulatio (initial)

1000MΩ(500VDC)

Dielectric vi (Initial)

Inter notationes apertas

2000VAC,1min

Inter coil & contactus

3000VAC,1min

Tempus operandi (in volt aestimatum).

≤30ms

Dimittis tempus (at volt aestimatum).

≤10ms

Mechanica

perficientur

Concussa resistentia

Eget

196m/s ² (10g)

Destructive

490m/s ² (100g)

Vibratio resistendi

10Hz～500Hz  49m/s²

patientia

Mechanica

1×10 ⁵ Opis

Electrical (Resistive)

Swithing： 1×10 ³ Opis（450VDC,40A）

Swithing： 1×10 ⁴ Opis（450VDC,10A）

Swithing：4×10 ³ Opis（650VDC,12A）

Faciens ： 7.5×10 ⁴ Opis（450VDC,35A）

Faciens ：5×10 ⁴ Opis（750VDC,40A）

Vena portandi facultatem

40A

60A: 30min

80A: 60s

160A: 5s

240A: 3s

400A: 0.6s

Agere

conditio

Ambiens temperatus

-40℃~85℃

Umor

5%~85% RH

Unitas pondus

Approx.55g (Sine affectu)

Construction

Fluxum probatum
