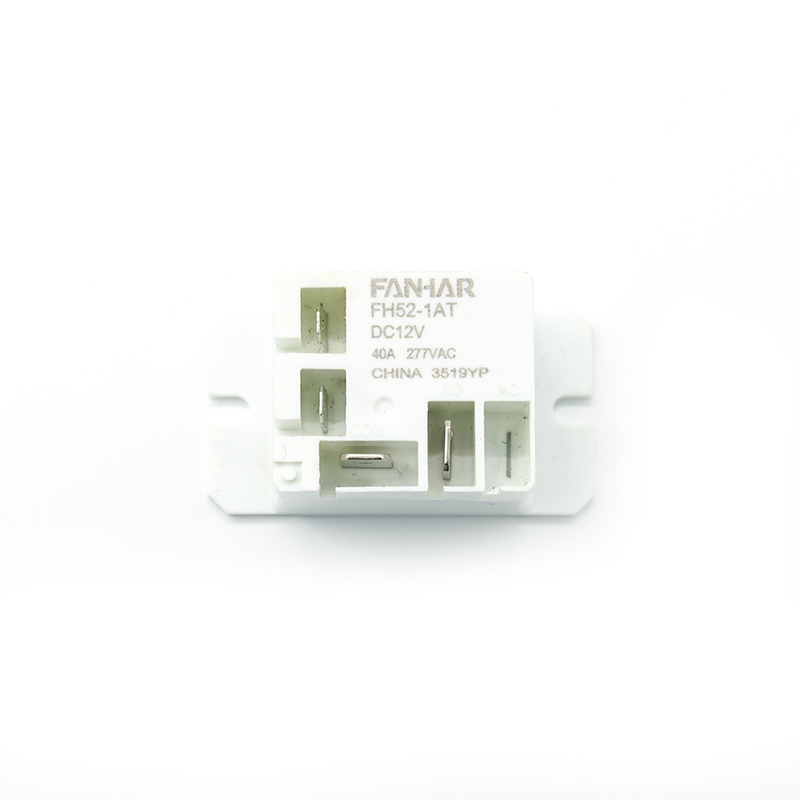

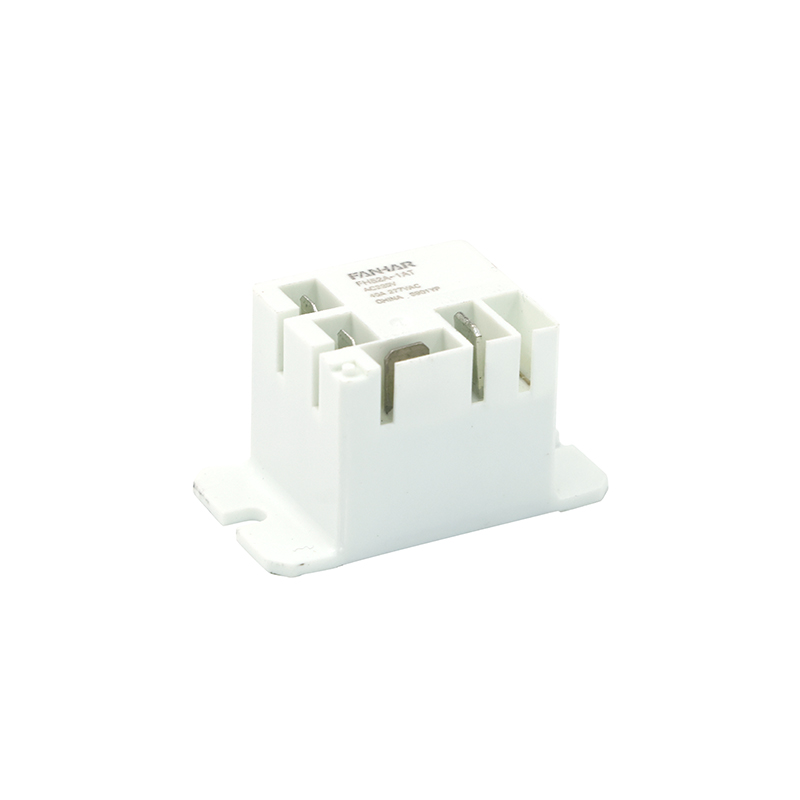

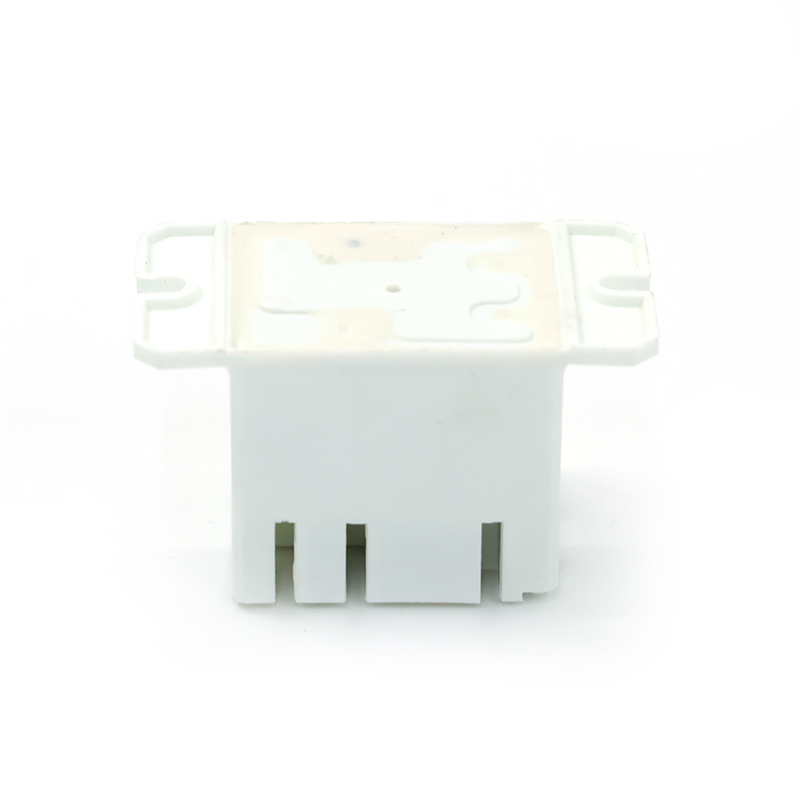

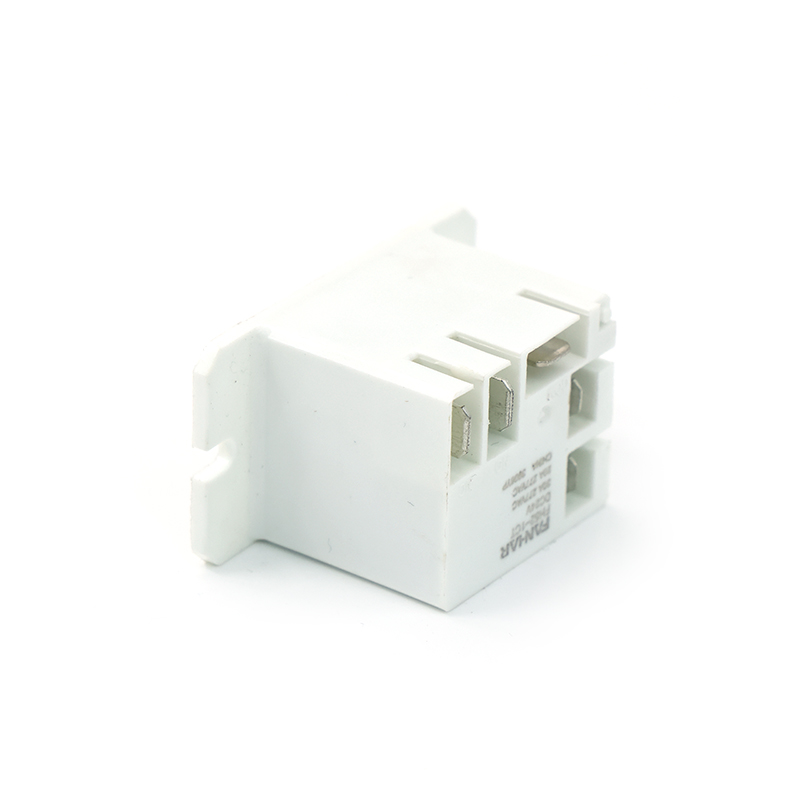

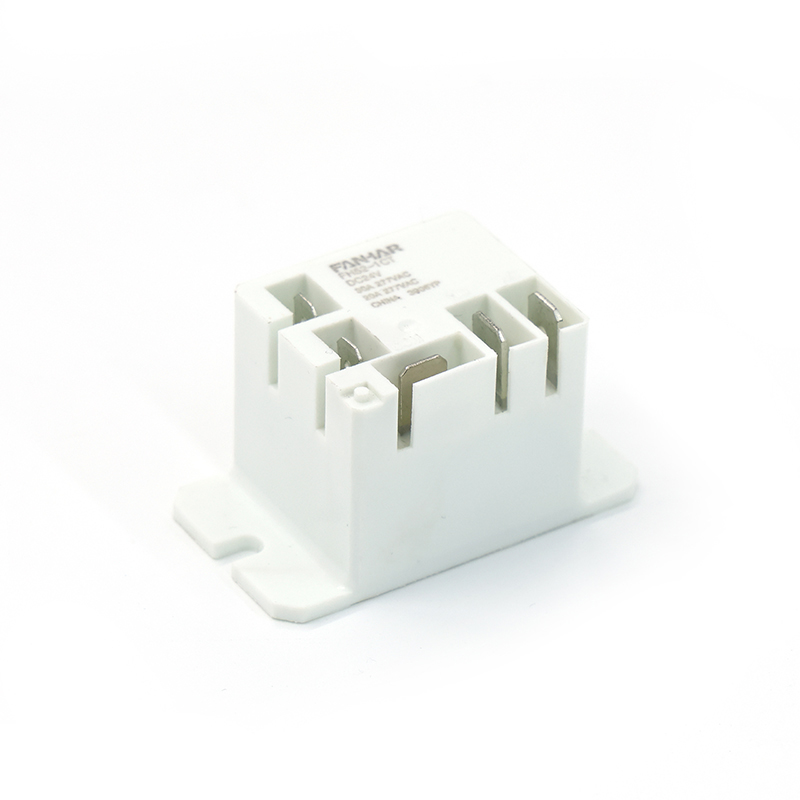

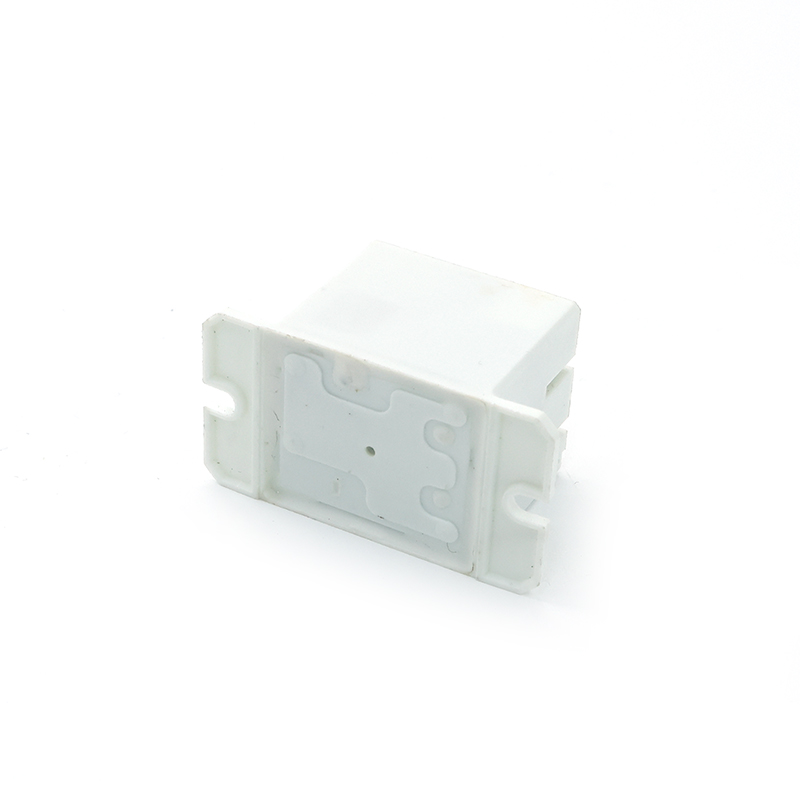

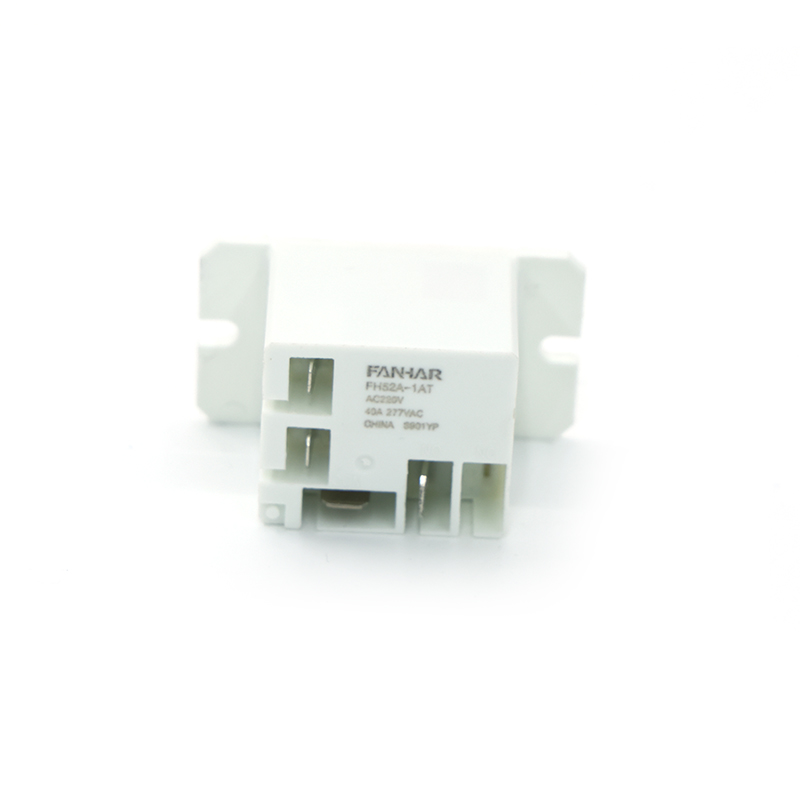

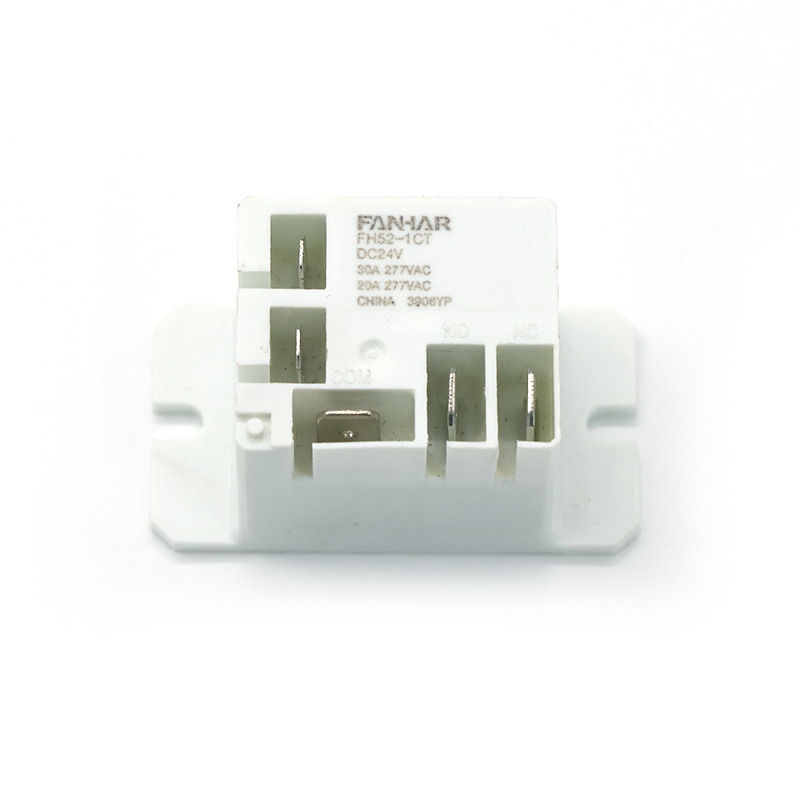

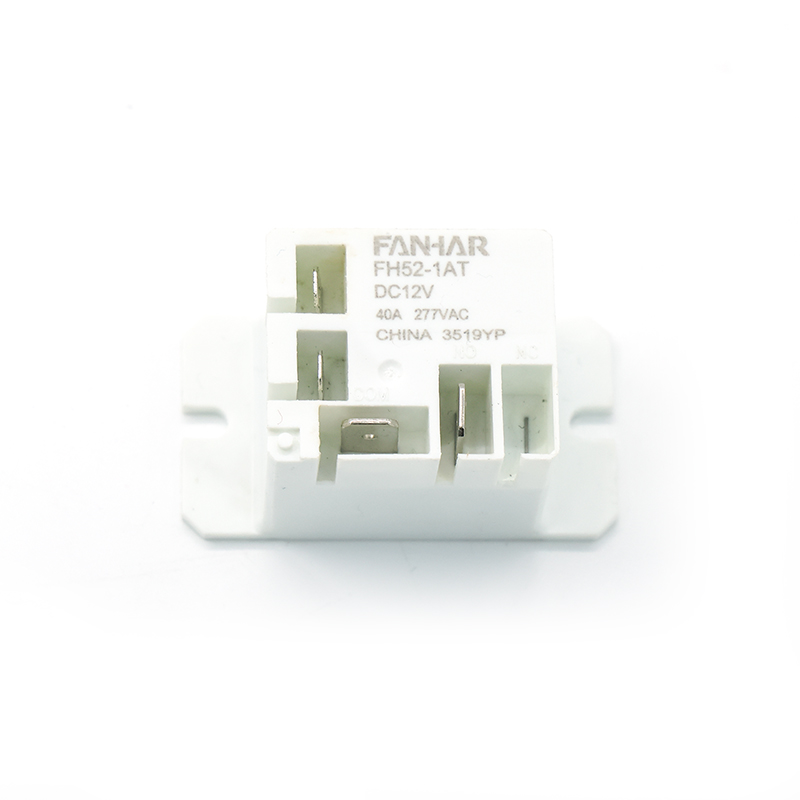

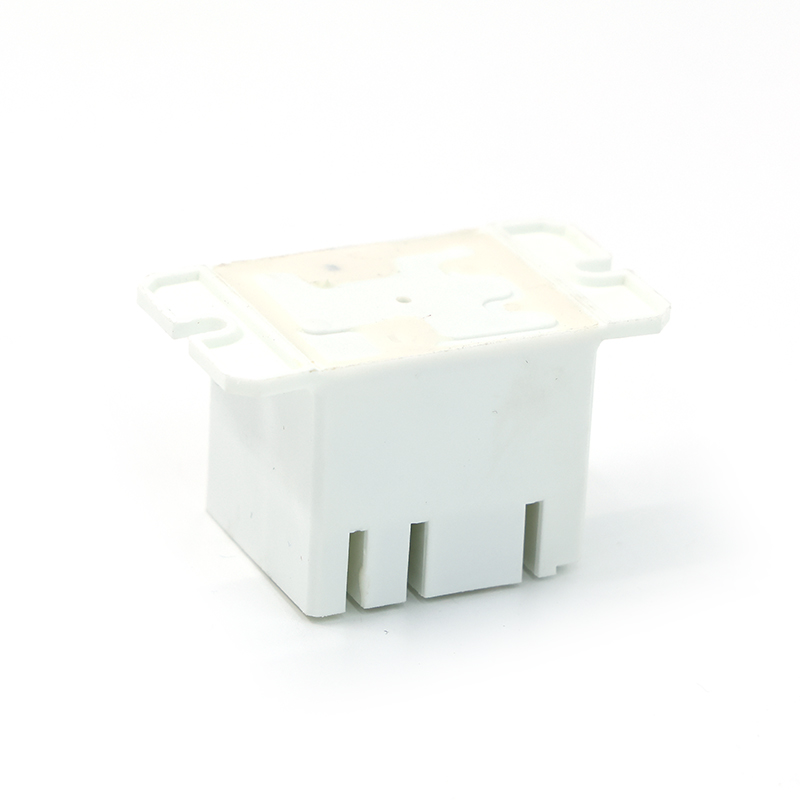

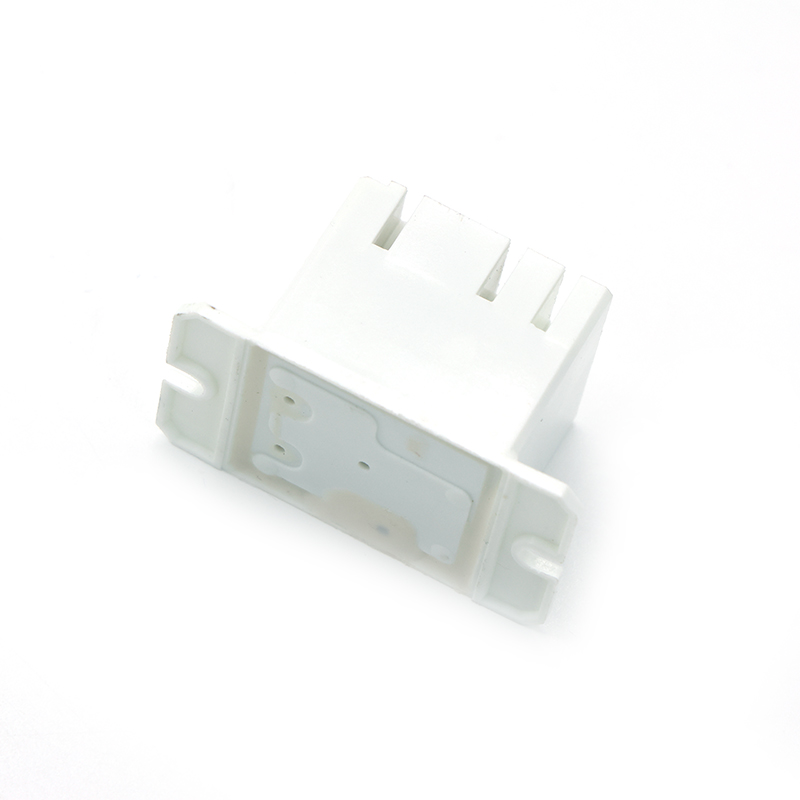

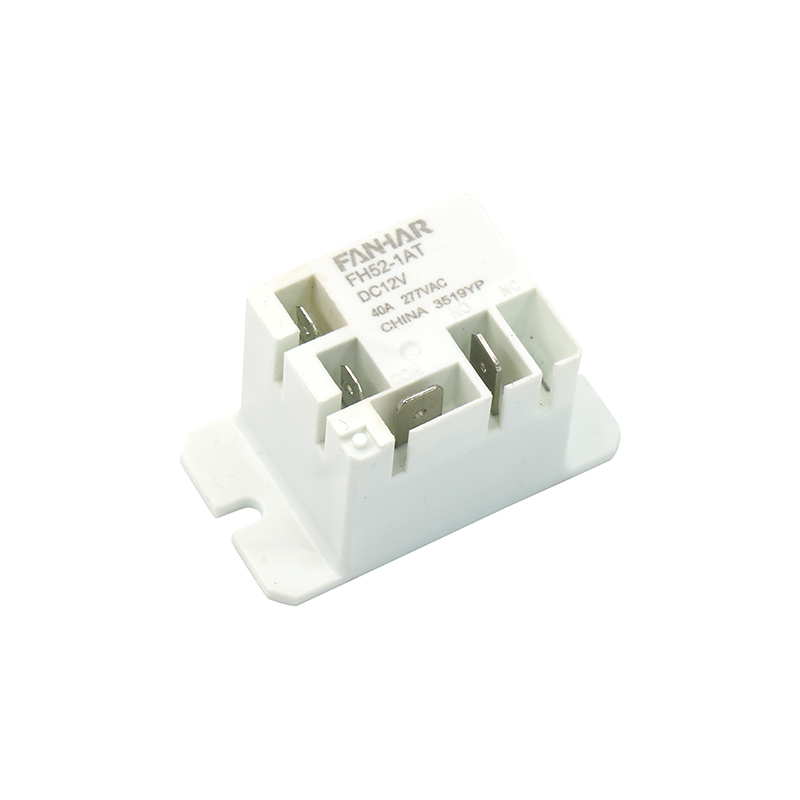

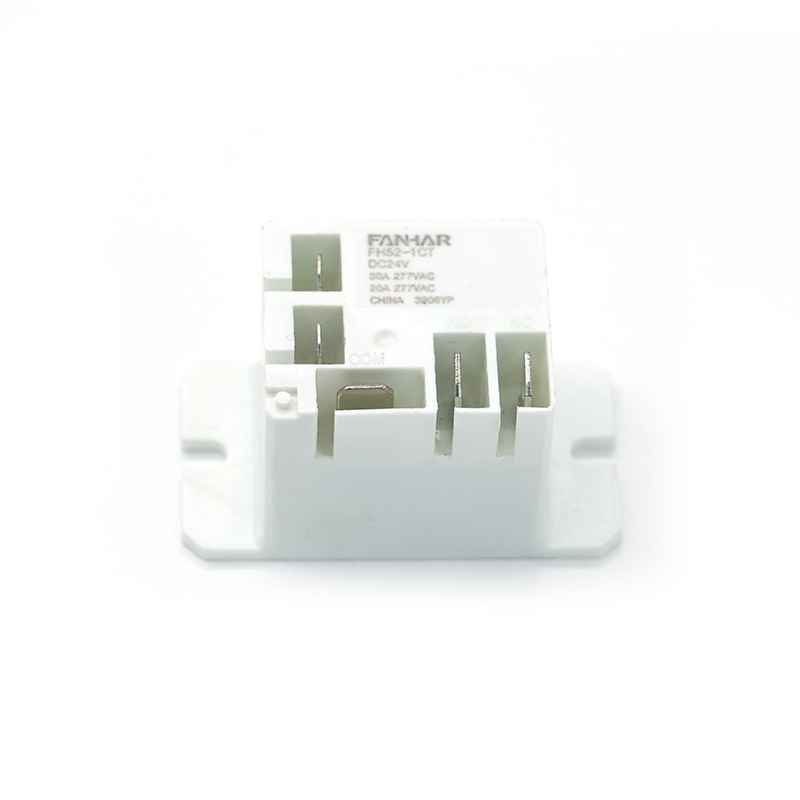

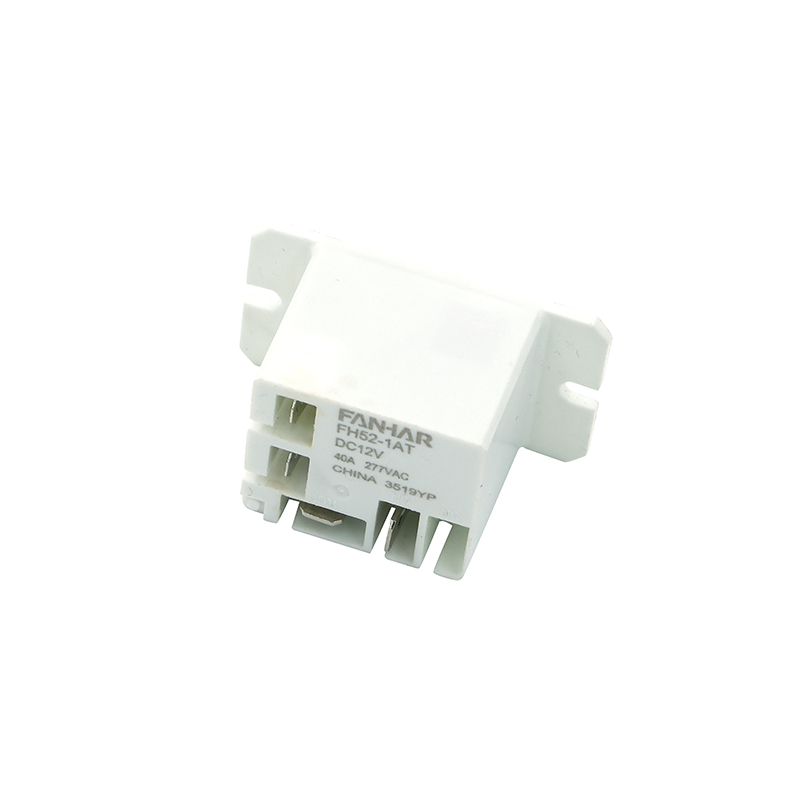

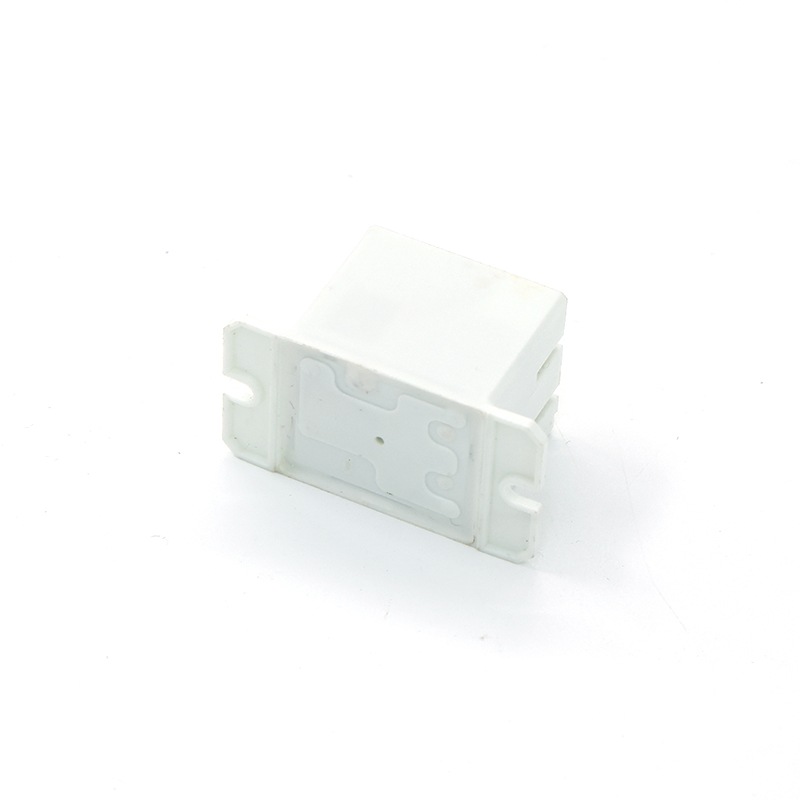

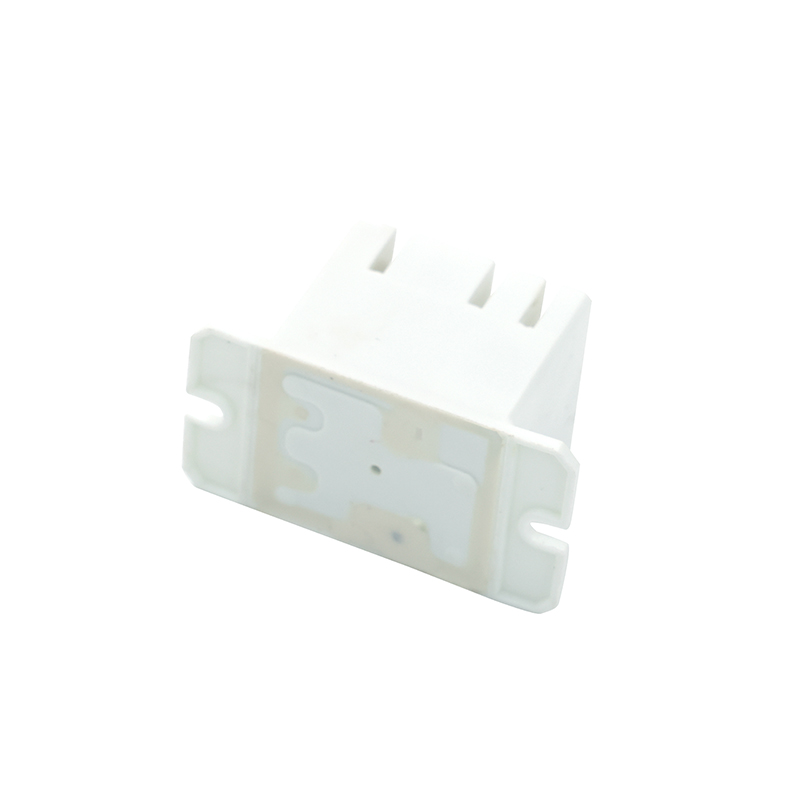

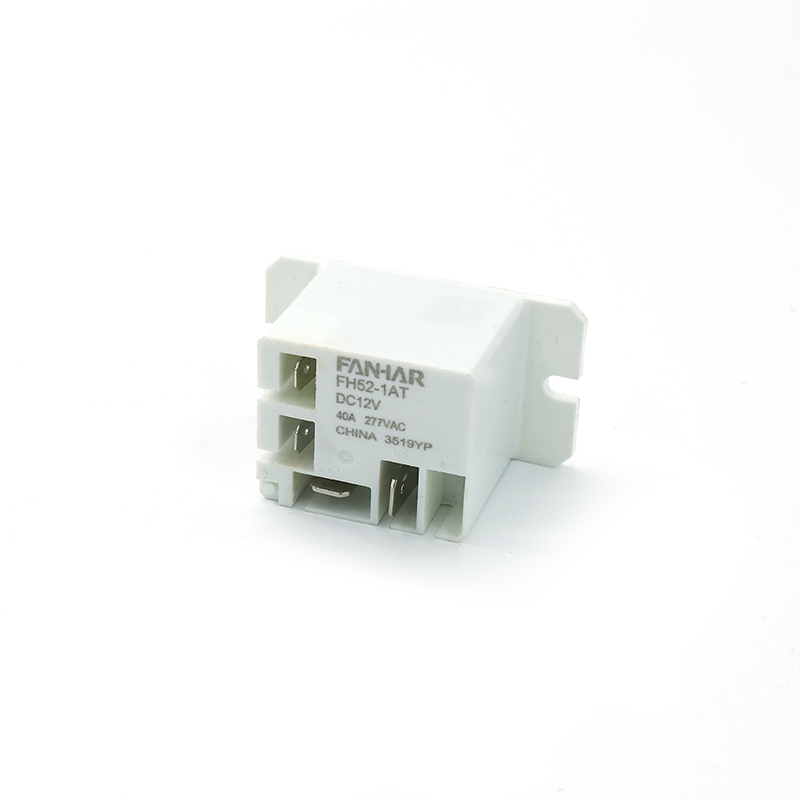

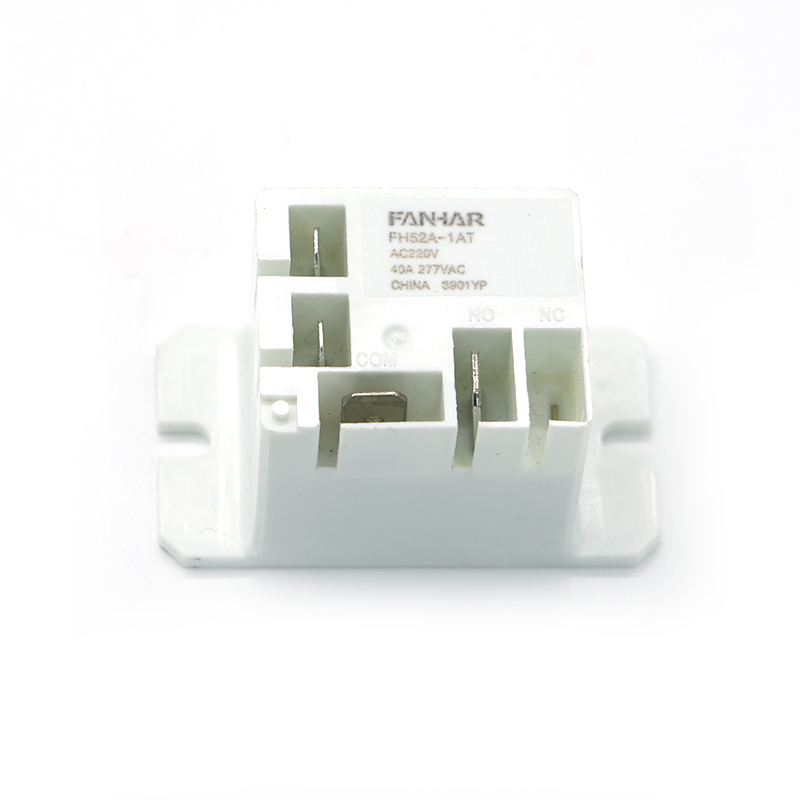

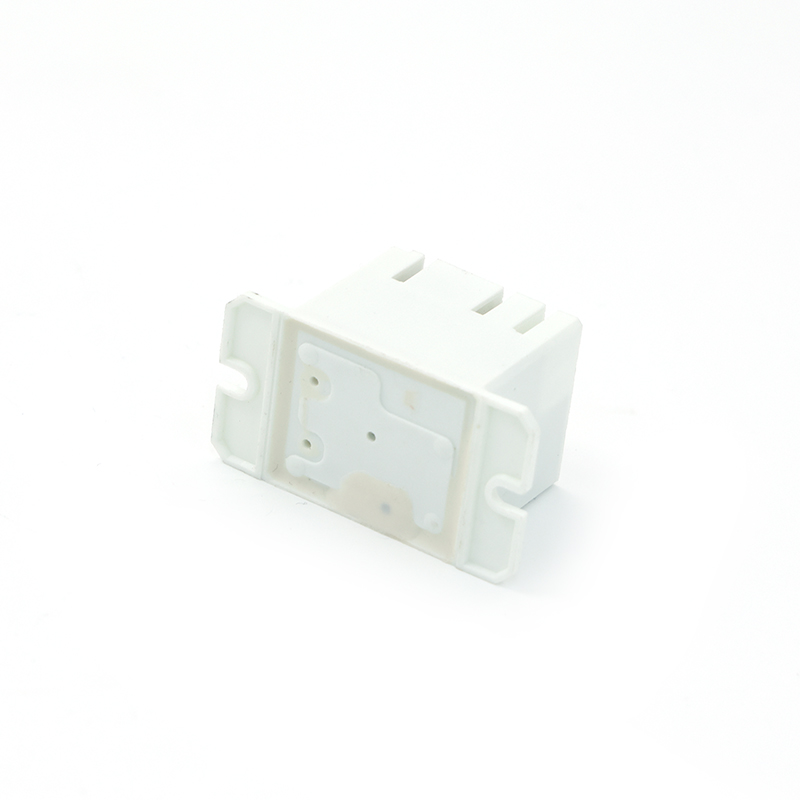

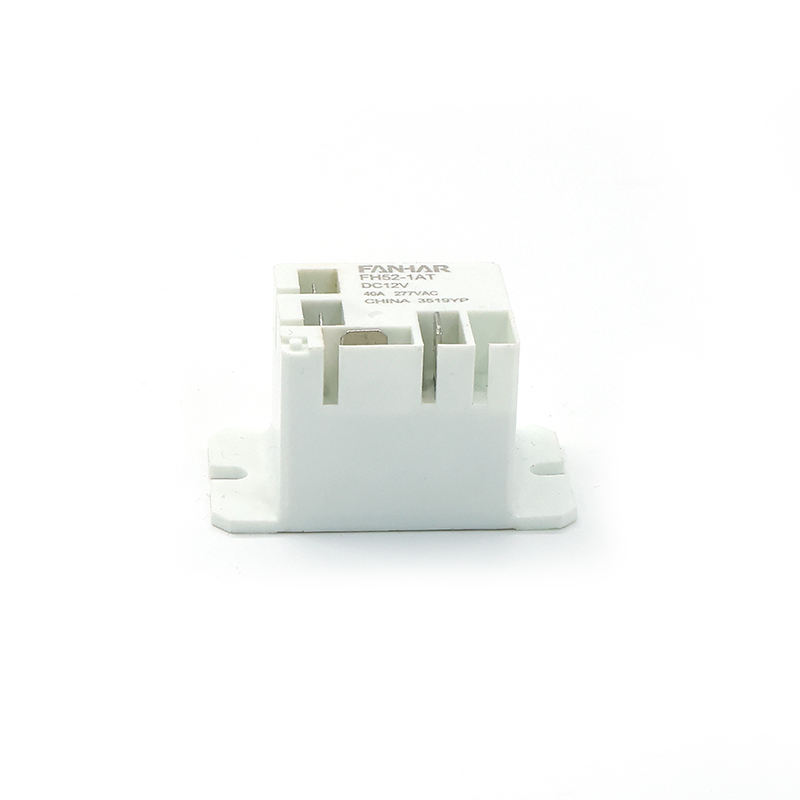

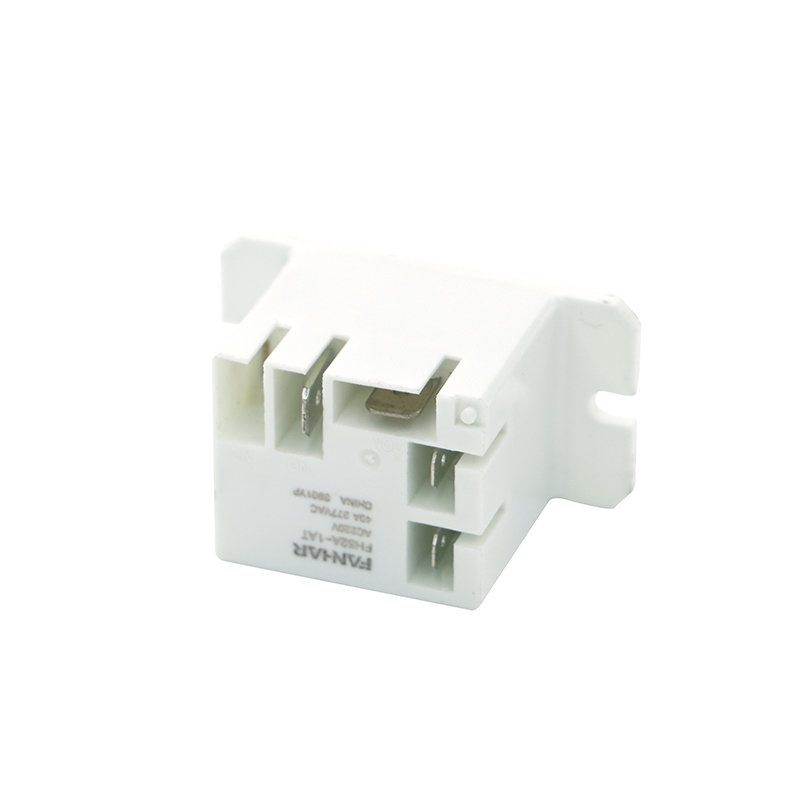

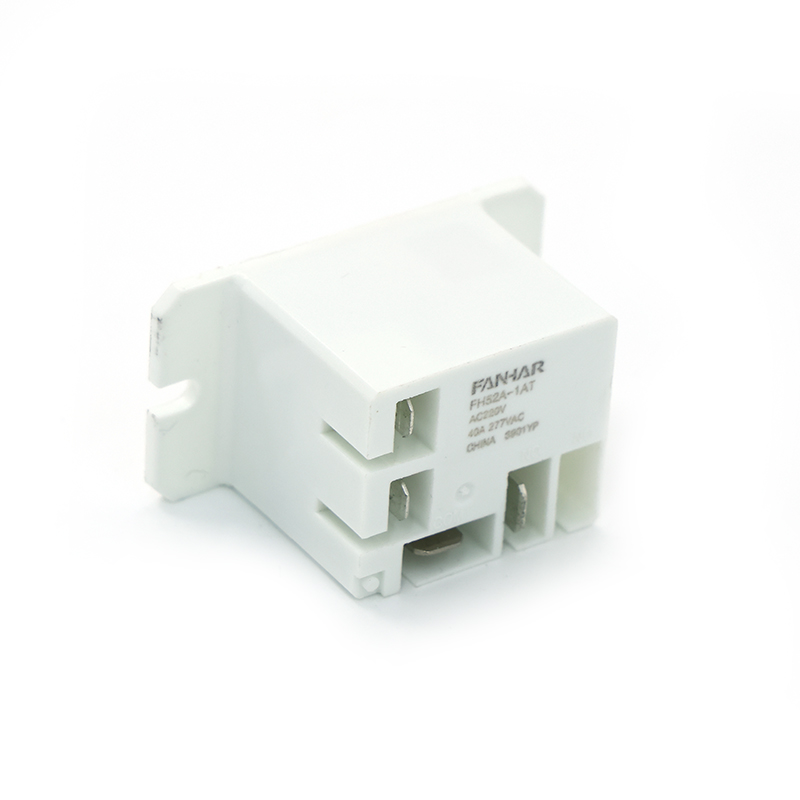

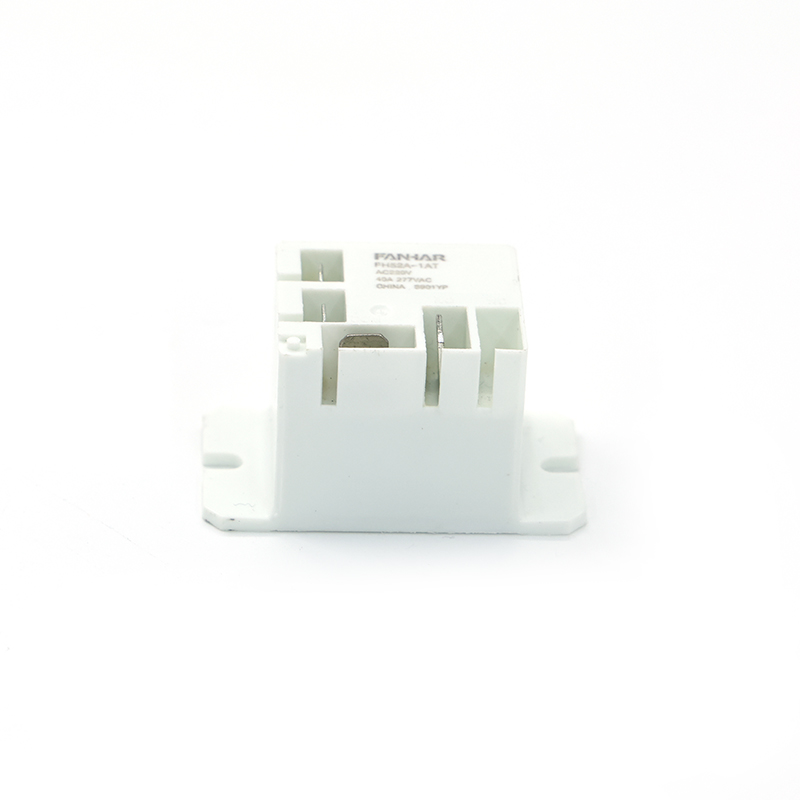

FH52/FH52A 20A 30A 40A Industrial Nullam

Specifications

Item

Contactus Data

Contactus dispositio

1A、1B、1C

Contactus resistentia (initial)

≤50mΩ(6VDC 1A)

Contactus materia

AgSnO ₂

Aestimavit valorem

Rated onus (Resistentia onus)

NO:30A (typum latinum)/40A 277VAC        20A 28VDC

NC:20A 277VAC

Max.switching voltage

277VAC  28VDC

Max.switching current

40A

Max.switching facultatem

11080VA   560W

Min.allowing onus

5VDC 100mA

Electrical

perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Vim dielectric (initial)

Inter aperta contactus

1500VAC, 1min

Inter coil & contactus

2500VAC, 1min

Tempus agunt

≤15ms

Dimittis tempus

≤10ms

Mechanica

perficientur

Offensus

resistentia

Eget

98m/s2(10g)

Destructive

980m/s2(100g)

Repugnantia vibratio

10Hz~55Hz 1.5mm DA

patientia

Mechanica

1× 10 ⁶ Opis

Electrical (Locus temperatus)

NO: 30A  277VAC/28VDC     1× 10 ⁵ Opis(ON/OFF= 1s/9s)

NO: 40A  277VAC             1× 10 ⁴ Opis(ON/OFF= 1s/9s)

NC: 20A   277VAC            1× 10 ⁴ Opis(ON/OFF= 1s/9s)

Agere

conditio

Ambiens temperatus

DC:-45℃~85℃  AC:-45℃~60℃

Umor

5% ad 85%

Terminatio

Cito contactus terminalis

Unitas pondus

Approx.36g

Construction

Plastic signatum、Flux probatum
