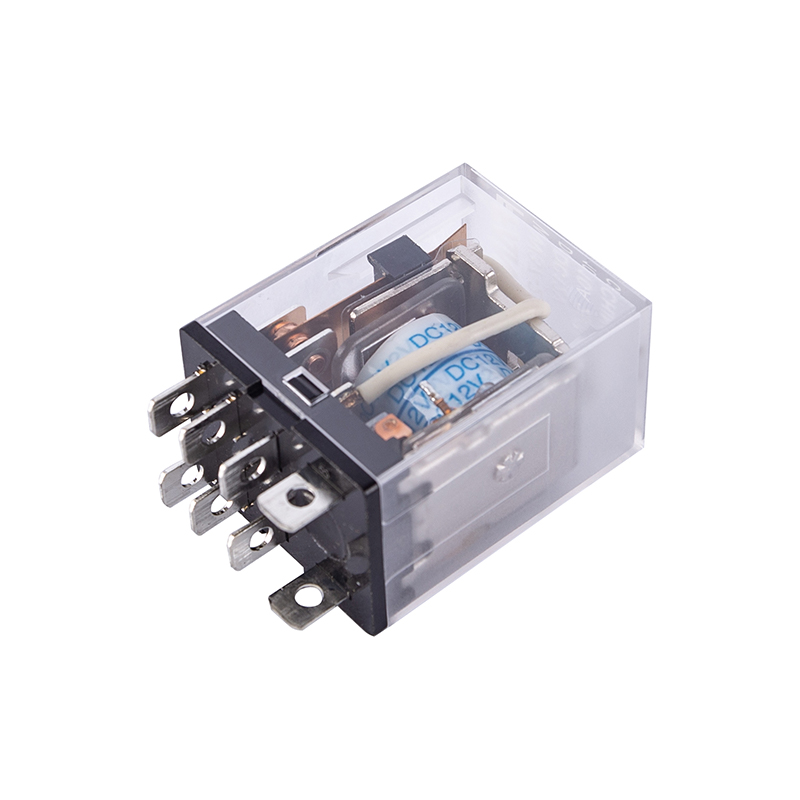

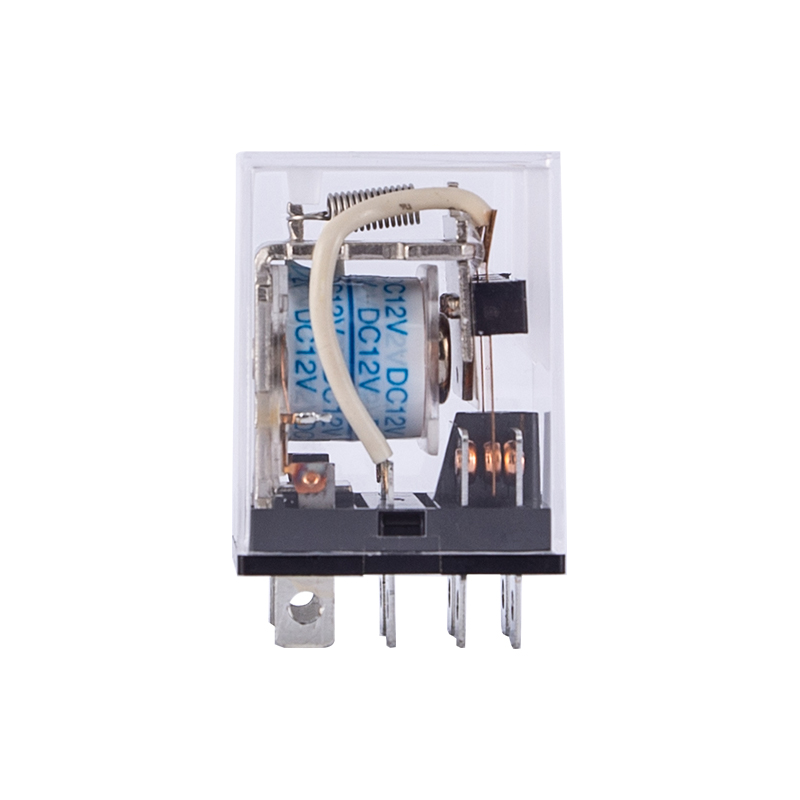

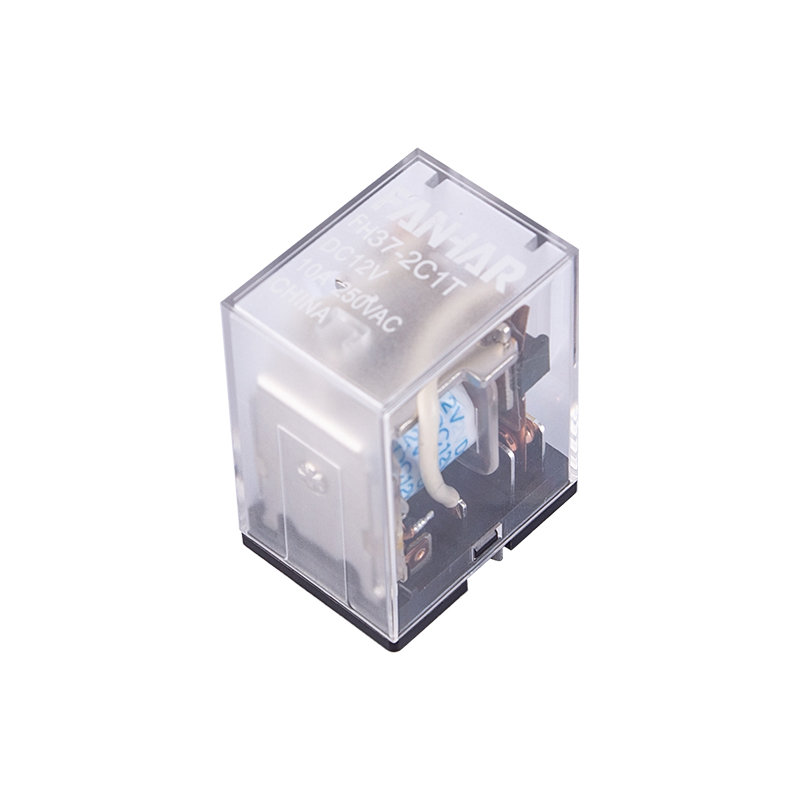

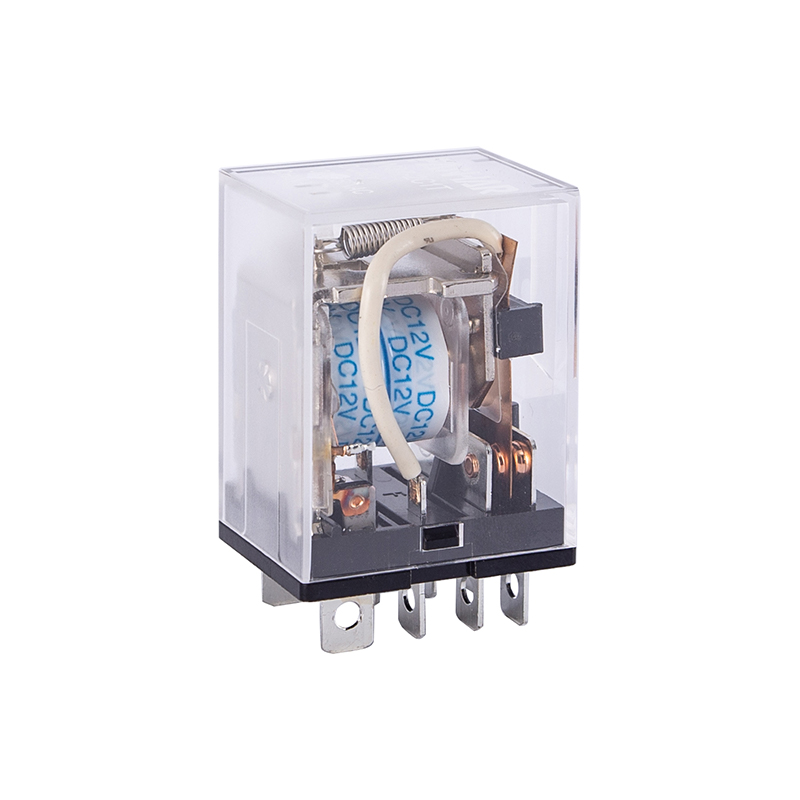

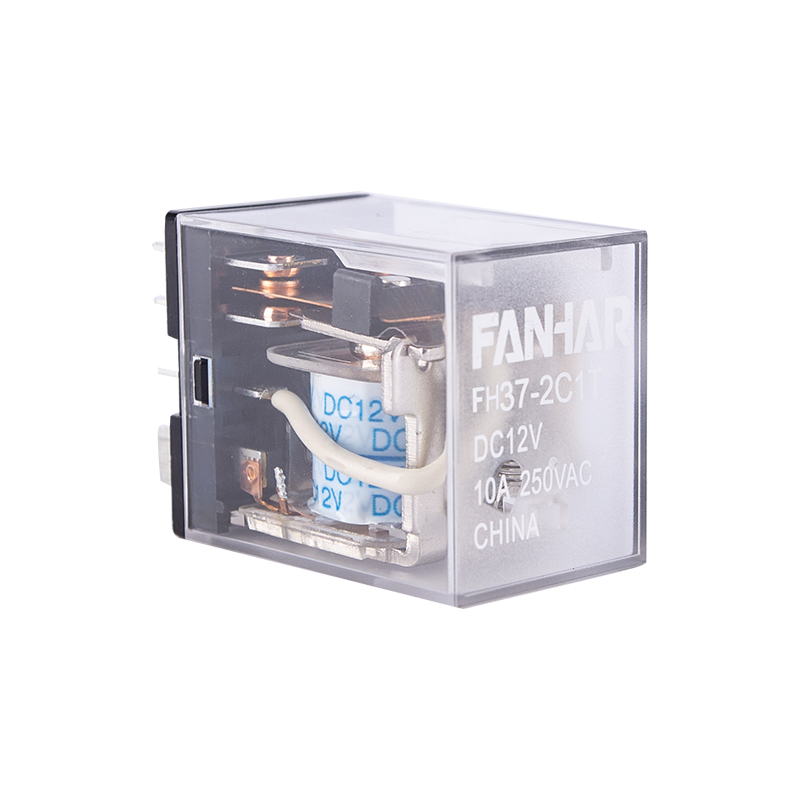

FH37 15A Summus intentione DC Nullam

Specifications

Item

Contactus Data

Contactus dispositio

1A、1B、1C

2A、2B、2C

Contactus resistentia (initial)

100mΩ(6VDC 1A)

Contactus materia

AgSnO ₂

Aestimavit valorem

Ratum onus (Resistentia onus)

15A 250VAC/30VDC

12A 250VAC/30VDC

Max.switching voltage

250VAC/30VDC

250VAC/30VDC

Max.switching current

15A

12A

Max.switching facultatem

3750VA/450W

3000VA/360W

Min.allowing onus

5VDC 100mA

Electrical

perficientur

Nulla resistentia (initial)

1000MΩ(500VDC)

Dielectric

vi

(initial)

Inter nota aperta

1000VAC,1min

1000VAC,1min

inter

coil& contacts

1500VAC,1min

1500VAC,1min

Impact resistentia voltage

1500VAC,1min

1500VAC,1min

Tempus agunt

≤25ms

Dimittis tempus

≤25ms

Mechanica

perficientur

Offensus

resistentia

Eget

98m/s2(10g)

Destructive

980m/s2(100g)

Repugnantia vibratio

10Hz~55Hz 1.5mm DA

patientia

Mechanica

1× 10 ⁷ Opis

Electrical (Locus temperatus)

15A 250VAC/30VDC (Resistentia)

1 ×10 ⁵ Opis (ON/OFF= 1s/9s)

12A 250VAC/30VDC (Resistentia)

1 ×10 ⁵ Opis (ON/OFF= 1s/9s)

Agere

conditio

Ambientium temperamentum

-40℃~70℃

Umor

5% ad 85%

Terminatio

PCB、Insert

Unitas pondus

Approx.37g

Construction

Fluxum probatum
